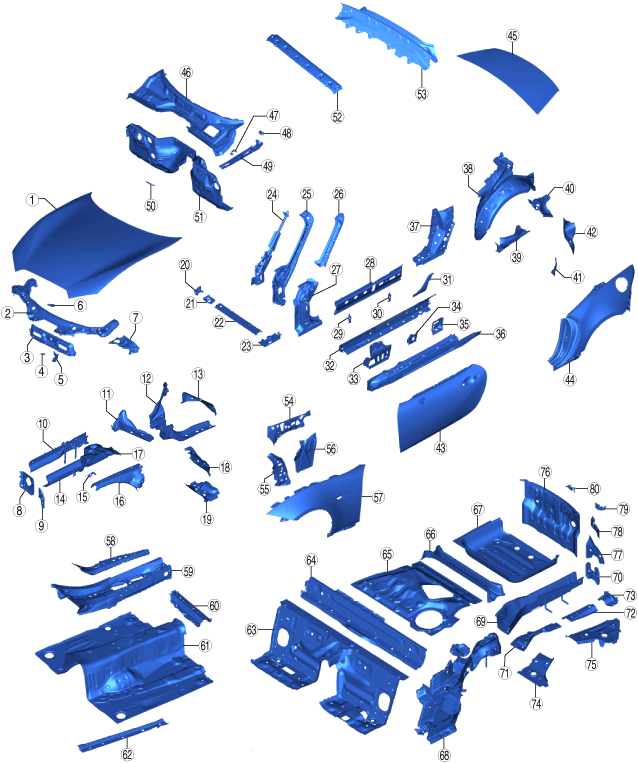

BODY COMPONENTS CONSTRUCTION [CONSTRUCTION]
id098007739700
Convertible Top
amxuub00000039
|
|
No. |
Part name |
Ultra high-tension steel |
High-tension steel |
Rust proof steel |
Thickness (mm {in}) |
||
|---|---|---|---|---|---|---|---|
|
1
|
Bonnet (outer panel) (*)
|
-
|
-
|
-
|
0.90 {0.035}
|
||
|
2
|
Shroud upper panel
|
-
|
×
|
×
|
0.65 {0.026}
|
||
|
3
|
Shroud lower panel
|
-
|
-
|
×
|
0.60 {0.024}
|
||
|
4
|
Shroud gusset
|
-
|
-
|
×
|
1.40 {0.0551}
|
||
|
5
|
Shroud upper reinforcement
|
-
|
×
|
×
|
0.70 {0.028}
|
||
|
6
|
Shroud side stay
|
LH
|
-
|
×
|
×
|
1.00 {0.0394}
|
|
|
RH
|
-
|
-
|
×
|
1.40 {0.0551}
|
|||
|
7
|
Shroud side panel
|
-
|
×
|
×
|
1.00 {0.0394}
|
||
|
8
|
Bumper bracket
|
×
|
-
|
×
|
2.00 {0.0787}
|
||
|
9
|
Light bracket
|
-
|
-
|
×
|
1.40 {0.0551}
|
||
|
10
|
Front side frame (inner)
|
Front
|
-
|
×
|
×
|
1.20 {0.0472}
|
|
|
Rear
|
×
|
-
|
×
|
1.40 {0.0551}
|
|||
|
11
|
Front frame (rear) reinforcement
|
×
|
-
|
×
|
2.00 {0.0787}
|
||
|
12
|
Front frame component
|
Front frame (outer) No.2
|
×
|
-
|
×
|
1.80 {0.0709}
|
|
|
Frame reinforcement
|
×
|
-
|
×
|
1.40 {0.0551}
|
|||
|
Suspension mounting reinforcement
|
-
|
-
|
×
|
1.40 {0.0551}
|
|||
|
Front frame (rear)
|
×
|
-
|
×
|
1.60 {0.0630}
|
|||
|
13
|
Front frame (outer)
|
×
|
-
|
×
|
1.20 {0.0472}
|
||
|
14
|
Front side frame (outer)
|
Front
|
-
|
×
|
×
|
1.20 {0.0472}
|
|
|
Rear
|
×
|
-
|
×
|
1.20 {0.0472}
|
|||
|
15
|
Front fender junction
|
-
|
-
|
×
|
0.80 {0.031}
|
||
|
16
|
Wheel apron component
|
Wheel apron (front)
|
×
|
-
|
×
|
0.70 {0.028}
|
|
|
Wheel apron (rear)
|
×
|
-
|
×
|
1.00 {0.0394}
|
|||
|
Apron reinforcement (rear)
|
-
|
-
|
×
|
0.80 {0.031}
|
|||
|
Apron reinforcement (upper)
|
-
|
×
|
×
|
0.80 {0.031}
|
|||
|
Apron reinforcement (lower)
|
-
|
-
|
×
|
0.70 {0.028}
|
|||
|
17
|
Front side frame component (front)
|
Suspension housing (upper)
|
-
|
-
|
×
|
1.60 {0.0630}
|
|
|
Front frame reinforcement
|
-
|
×
|
×
|
1.60 {0.0630}
|
|||
|
Frame inner reinforcement (front)
|
×
|
-
|
×
|
1.20 {0.0472}
|
|||
|
Frame inner reinforcement (rear)
|
×
|
-
|
×
|
1.40 {0.0551}
|
|||
|
Apron reinforcement (LH)
|
-
|
-
|
×
|
1.00 {0.0394}
|
|||
|
18
|
Front frame reinforcement No.2
|
-
|
×
|
×
|
0.90 {0.035}
|
||
|
19
|
Torque box
|
-
|
×
|
×
|
1.20 {0.0472}
|
||
|
20
|
Crossmember No.1 side bracket
|
-
|
-
|
×
|
1.00 {0.0394}
|
||
|
21
|
Crossmember No.1 side reinforcement (RH)
|
-
|
-
|
×
|
0.80 {0.031}
|
||
|
22
|
Crossmember No.1 component
|
Upper
|
-
|
×
|
×
|
0.80 {0.031}
|
|
|
Lower
|
-
|
×
|
×
|
0.70 {0.028}
|
|||
|
23
|
Crossmember No.1 side reinforcement component (LH)
|
Crossmember No.1 reinforcement
|
-
|
-
|
×
|
2.00 {0.0787}
|
|
|
Side reinforcement
|
-
|
-
|
×
|
1.20 {0.0472}
|
|||
|
24
|
Front pillar reinforcement component
|
Front pillar reinforcement (outer)
|
×
|
-
|
-
|
1.40 {0.0551}
|
|
|
Front pillar reinforcement (inner)
|
-
|
-
|
-
|
2.00 {0.0787}
|
|||
|
25
|
Front pillar (inner) component
|
Hinge pillar (inner)
|
×
|
-
|
×
|
1.60 {0.0630}
|
|
|
Front pillar (inner)
|
×
|
-
|
-
|
1.00 {0.0394}
|
|||
|
Front pillar reinforcement (inner)
|
×
|
-
|
×
|
1.20 {0.0472}
|
|||
|
26
|
Front pillar (outer)
|
×
|
-
|
×
|
1.00 {0.0394}
|
||
|
27
|
Hinge pillar (outer)
|
×
|
-
|
×
|
1.20 {0.0472}
|
||
|
28
|
Side sill reinforcement
|
×
|
-
|
×
|
0.70 {0.028}
|
||
|
29
|
Side sill reinforcement (front)
|
×
|
-
|
-
|
1.00 {0.0394}
|
||
|
30
|
Side sill reinforcement (center)
|
×
|
-
|
-
|
1.00 {0.0394}
|
||
|
31
|
Side sill reinforcement (rear)
|
×
|
-
|
-
|
1.40 {0.0551}
|
||
|
32
|
Side sill (inner) component
|
Side sill (inner)
|
×
|
-
|
-
|
1.20 {0.0472}
|
|
|
Side sill reinforcement
|
×
|
-
|
×
|
1.20 {0.0472}
|
|||
|
33
|
Side sill (inner) reinforcement (front)
|
×
|
-
|
×
|
1.20 {0.0472}
|
||
|
34
|
Side sill (inner) reinforcement (center)
|
×
|
-
|
×
|
0.80 {0.031}
|
||
|
35
|
Side sill (inner) reinforcement (rear)
|
×
|
-
|
×
|
1.60 {0.0630}
|
||
|
36
|
Side sill (outer)
|
×
|
-
|
×
|
1.20 {0.0472}
|
||
|
37
|
Corner junction component
|
Corner pillar (inner)
|
-
|
-
|
-
|
0.80 {0.031}
|
|
|
B pillar (inner, upper)
|
×
|
-
|
-
|
1.60 {0.0630}
|
|||
|
Corner junction (outer)
|
×
|
-
|
-
|
0.80 {0.031}
|
|||
|
Corner junction (inner)
|
-
|
×
|
-
|
1.80 {0.0709}
|
|||
|
Corner reinforcement
|
-
|
-
|
-
|
0.60 {0.024}
|
|||
|
Side sill gusset
|
×
|
-
|
×
|
1.60 {0.0630}
|
|||
|
38
|
Rear pillar (inner) component
|
B pillar (inner, lower)
|
×
|
-
|
-
|
0.80 {0.031}
|
|
|
Rear pillar (inner, lower)
|
-
|
-
|
×
|
0.60 {0.024}
|
|||
|
Side brace
|
-
|
-
|
-
|
0.60 {0.024}
|
|||
|
Wheel housing (inner)
|
-
|
-
|
×
|
0.60 {0.024}
|
|||
|
Package gusset
|
-
|
×
|
-
|
1.20 {0.0472}
|
|||
|
39
|
Rear fender rain rail
|
-
|
-
|
×
|
0.75 {0.030}
|
||
|
40
|
Rear pillar (inner, upper)
|
-
|
-
|
-
|
0.60 {0.024}
|
||
|
41
|
Rear fender panel (lower)
|
-
|
-
|
×
|
0.65 {0.026}
|
||
|
42
|
Corner plate
|
-
|
-
|
×
|
0.65 {0.026}
|
||
|
43
|
Door panel (outer)
|
-
|
×
|
×
|
0.65 {0.026}
|
||
|
44
|
Rear fender panel
|
-
|
-
|
×
|
0.65 {0.026}
|
||
|
45
|
Trunk lid (outer panel) (*)
|
-
|
-
|
-
|
0.90 {0.035}
|
||
|
46
|
Dash panel (upper)
|
-
|
-
|
×
|
0.65 {0.026}
|
||
|
47
|
Front fender bracket
|
-
|
-
|
×
|
0.80 {0.031}
|
||
|
48
|
End plate
|
-
|
-
|
×
|
0.90 {0.035}
|
||
|
49
|
Cowl upper plate
|
Cowl upper plate (front)
|
×
|
-
|
×
|
1.20 {0.0472}
|
|
|
Cowl upper plate (rear)
|
-
|
-
|
×
|
1.40 {0.0551}
|
|||
|
50
|
Hole cover
|
-
|
-
|
×
|
0.60 {0.024}
|
||
|
51
|
Dash panel (lower)
|
-
|
-
|
×
|
0.80 {0.031}
|
||
|
52
|
Front header
|
×
|
-
|
×
|
1.00 {0.0394}
|
||
|
53
|
Rear deck panel
|
Bulkhead panel
|
-
|
×
|
-
|
0.75 {0.030}
|
|
|
Package member
|
-
|
-
|
×
|
0.75 {0.030}
|
|||
|
Trim set bracket
|
-
|
×
|
-
|
0.70 {0.028}
|
|||
|
54
|
Cowl side reinforcement
|
×
|
-
|
×
|
0.70 {0.028}
|
||
|
55
|
Cowl side junction
|
×
|
-
|
×
|
0.65 {0.026}
|
||
|
56
|
Cowl side panel
|
×
|
-
|
×
|
0.70 {0.028}
|
||
|
57
|
Front fender panel (*)
|
-
|
-
|
-
|
1.10 {0.0433}
|
||
|
58
|
Floor reinforcement
|
Front
|
×
|
-
|
-
|
2.00 {0.0787}
|
|
|
Rear
|
×
|
-
|
-
|
1.20 {0.0472}
|
|||
|
59
|
Tunnel reinforcement component
|
Dash side reinforcement
|
×
|
-
|
-
|
1.20 {0.0472}
|
|
|
Instrument panel bracket
|
×
|
-
|
-
|
1.80 {0.0709}
|
|||
|
60
|
Crossmember No.2
|
Crossmember No.2 (inner)
|
×
|
-
|
-
|
1.00 {0.0394}
|
|
|
Crossmember No.2 (outer)
|
-
|
×
|
-
|
1.60 {0.0630}
|
|||
|
61
|
Front floor component
|
Floor reinforcement
|
×
|
-
|
-
|
0.80 {0.031}
|
|
|
Front floor panel
|
-
|
-
|
×
|
0.60 {0.024}
|
|||
|
62
|
Front B frame
|
×
|
-
|
×
|
1.20 {0.0472}
|
||
|
63
|
Center floor panel component
|
Seat bracket
|
-
|
×
|
-
|
1.00 {0.0394}
|
|
|
Center floor panel
|
×
|
-
|
×
|
0.80 {0.031}
|
|||
|
Tunnel reinforcement (rear)
|
-
|
×
|
-
|
1.60 {0.0630}
|
|||
|
64
|
Crossmember No.3 component
|
Crossmember No.3
|
×
|
-
|
×
|
1.00 {0.0394}
|
|
|
Crossmember No.3 reinforcement
|
×
|
-
|
-
|
1.20 {0.0472}
|
|||
|
65
|
Rear floor panel
|
-
|
-
|
×
|
0.60 {0.024}
|
||
|
66
|
Crossmember No.4
|
-
|
×
|
×
|
0.80 {0.031}
|
||
|
67
|
Trunk floor panel
|
-
|
-
|
×
|
0.60 {0.024}
|
||
|
68
|
Rear side frame (front)
|
Rear side sill (inner)
|
×
|
-
|
×
|
1.20 {0.0472}
|
|
|
Rear side frame
|
×
|
-
|
×
|
1.00 {0.0394}
|
|||
|
Rear frame reinforcement
|
-
|
-
|
-
|
1.40 {0.0551}
|
|||
|
Rear suspension housing
|
-
|
×
|
×
|
2.30 {0.0906}
|
|||
|
69
|
Rear side frame (rear)
|
×
|
-
|
×
|
1.20 {0.0472}
|
||
|
70
|
Rear bumper bracket
|
×
|
-
|
×
|
1.60 {0.0630}
|
||
|
71
|
Rear side frame (upper, front)
|
×
|
-
|
-
|
0.90 {0.035}
|
||
|
72
|
Rear side frame (upper, rear)
|
×
|
-
|
-
|
0.80 {0.031}
|
||
|
73
|
Floor side panel No.1
|
×
|
-
|
-
|
1.60 {0.0630}
|
||
|
74
|
Rear frame reinforcement
|
×
|
-
|
×
|
1.20 {0.0472}
|
||
|
75
|
Floor side panel No.2
|
-
|
-
|
×
|
0.60 {0.024}
|
||
|
76
|
Rear end panel component
|
Rear end panel
|
-
|
-
|
×
|
0.60 {0.024}
|
|
|
Rear end member
|
-
|
-
|
-
|
0.65 {0.026}
|
|||
|
77
|
Light bracket (rear)
|
-
|
-
|
×
|
0.65 {0.026}
|
||
|
78
|
Rear fender gusset
|
-
|
-
|
×
|
0.60 {0.024}
|
||
|
79
|
Rear bumper bracket (side)
|
-
|
-
|
×
|
1.00 {0.0394}
|
||
|
80
|
Rear bumper bracket (center)
|
-
|
-
|
×
|
1.00 {0.0394}
|
||
Retractable Hardtop
amxzzb00000092
|
|
No. |
Part name |
Ultra high-tension steel |
High-tension steel |
Rust proof steel |
Thickness (mm {in}) |
||
|---|---|---|---|---|---|---|---|
|
1
|
Bonnet (outer panel) (*)
|
-
|
-
|
-
|
0.90 {0.035}
|
||
|
2
|
Shroud upper panel
|
-
|
×
|
×
|
0.65 {0.026}
|
||
|
3
|
Shroud lower panel
|
-
|
-
|
×
|
0.60 {0.024}
|
||
|
4
|
Shroud gusset
|
-
|
-
|
×
|
1.40 {0.0551}
|
||
|
5
|
Shroud upper reinforcement
|
-
|
×
|
×
|
0.70 {0.028}
|
||
|
6
|
Shroud side stay
|
LH
|
-
|
×
|
×
|
1.00 {0.0394}
|
|
|
RH
|
-
|
-
|
×
|
1.40 {0.0551}
|
|||
|
7
|
Shroud side panel
|
-
|
×
|
×
|
1.00 {0.0394}
|
||
|
8
|
Bumper bracket
|
×
|
-
|
×
|
2.00 {0.0787}
|
||
|
9
|
Light bracket
|
-
|
-
|
×
|
1.40 {0.0551}
|
||
|
10
|
Front side frame (inner)
|
Front
|
-
|
×
|
×
|
1.20 {0.0472}
|
|
|
Rear
|
×
|
-
|
×
|
1.40 {0.0551}
|
|||
|
11
|
Front frame (rear) reinforcement
|
×
|
-
|
×
|
2.00 {0.0787}
|
||
|
12
|
Front frame component
|
Front frame (outer) No.2
|
×
|
-
|
×
|
1.80 {0.0709}
|
|
|
Frame reinforcement
|
×
|
-
|
×
|
1.40 {0.0551}
|
|||
|
Suspension mounting reinforcement
|
-
|
-
|
×
|
1.40 {0.0551}
|
|||
|
Front frame (rear)
|
×
|
-
|
×
|
1.60 {0.0630}
|
|||
|
13
|
Front frame (outer)
|
×
|
-
|
×
|
1.20 {0.0472}
|
||
|
14
|
Front side frame (outer)
|
Front
|
-
|
×
|
×
|
1.20 {0.0472}
|
|
|
Rear
|
×
|
-
|
×
|
1.20 {0.0472}
|
|||
|
15
|
Front fender junction
|
-
|
-
|
×
|
0.80 {0.031}
|
||
|
16
|
Wheel apron component
|
Wheel apron (front)
|
×
|
-
|
×
|
0.70 {0.028}
|
|
|
Wheel apron (rear)
|
×
|
-
|
×
|
1.00 {0.0394}
|
|||
|
Apron reinforcement (rear)
|
-
|
-
|
×
|
0.80 {0.031}
|
|||
|
Apron reinforcement (upper)
|
-
|
×
|
×
|
0.80 {0.031}
|
|||
|
Apron reinforcement (lower)
|
-
|
-
|
×
|
0.70 {0.028}
|
|||
|
17
|
Front side frame component (front)
|
Suspension housing (upper)
|
-
|
-
|
×
|
1.60 {0.0630}
|
|
|
Front frame reinforcement
|
-
|
×
|
×
|
1.60 {0.0630}
|
|||
|
Frame inner reinforcement (front)
|
×
|
-
|
×
|
1.20 {0.0472}
|
|||
|
Frame inner reinforcement (rear)
|
×
|
-
|
×
|
1.40 {0.0551}
|
|||
|
Apron reinforcement (LH)
|
-
|
-
|
×
|
1.00 {0.0394}
|
|||
|
18
|
Front frame reinforcement No.2
|
-
|
×
|
×
|
0.90 {0.035}
|
||
|
19
|
Torque box
|
-
|
×
|
×
|
1.20 {0.0472}
|
||
|
20
|
Crossmember No.1 side bracket
|
-
|
-
|
×
|
1.00 {0.0394}
|
||
|
21
|
Crossmember No.1 side reinforcement (RH)
|
-
|
-
|
×
|
0.80 {0.031}
|
||
|
22
|
Crossmember No.1 component
|
Upper
|
-
|
×
|
×
|
0.80 {0.031}
|
|
|
Lower
|
-
|
×
|
×
|
0.70 {0.028}
|
|||
|
23
|
Crossmember No.1 side reinforcement component (LH)
|
Crossmember No.1 reinforcement
|
-
|
-
|
×
|
2.00 {0.0787}
|
|
|
Side reinforcement
|
-
|
-
|
×
|
1.20 {0.0472}
|
|||
|
24
|
Front pillar reinforcement component
|
Front pillar reinforcement (outer)
|
×
|
-
|
-
|
1.40 {0.0551}
|
|
|
Front pillar reinforcement (inner)
|
-
|
-
|
-
|
2.00 {0.0787}
|
|||
|
25
|
Front pillar (inner) component
|
Hinge pillar (inner)
|
×
|
-
|
×
|
1.60 {0.0630}
|
|
|
Front pillar (inner)
|
×
|
-
|
-
|
1.00 {0.0394}
|
|||
|
Front pillar reinforcement (inner)
|
×
|
-
|
×
|
1.20 {0.0472}
|
|||
|
26
|
Front pillar (outer)
|
×
|
-
|
×
|
1.00 {0.0394}
|
||
|
27
|
Hinge pillar (outer)
|
×
|
-
|
×
|
1.20 {0.0472}
|
||
|
28
|
Side sill reinforcement
|
×
|
-
|
×
|
0.70 {0.028}
|
||
|
29
|
Side sill reinforcement (front)
|
×
|
-
|
-
|
1.00 {0.0394}
|
||
|
30
|
Side sill reinforcement (center)
|
×
|
-
|
-
|
1.00 {0.0394}
|
||
|
31
|
Side sill reinforcement (rear)
|
×
|
-
|
-
|
1.40 {0.0551}
|
||
|
32
|
Side sill (inner) component
|
Side sill (inner)
|
×
|
-
|
-
|
1.20 {0.0472}
|
|
|
Side sill reinforcement
|
×
|
-
|
×
|
1.20 {0.0472}
|
|||
|
33
|
Side sill (inner) reinforcement (front)
|
×
|
-
|
×
|
1.20 {0.0472}
|
||
|
34
|
Side sill (inner) reinforcement (center)
|
×
|
-
|
×
|
0.80 {0.031}
|
||
|
35
|
Side sill (inner) reinforcement (rear)
|
×
|
-
|
×
|
1.60 {0.0630}
|
||
|
36
|
Side sill (outer)
|
×
|
-
|
×
|
1.20 {0.0472}
|
||
|
37
|
Corner junction component
|
Corner pillar (inner)
|
-
|
-
|
-
|
0.80 {0.031}
|
|
|
B pillar (inner, upper)
|
×
|
-
|
-
|
1.60 {0.0630}
|
|||
|
Corner junction (outer)
|
×
|
-
|
-
|
0.80 {0.031}
|
|||
|
Corner junction (inner)
|
-
|
×
|
-
|
1.80 {0.0709}
|
|||
|
Corner reinforcement
|
-
|
-
|
-
|
0.60 {0.024}
|
|||
|
Side sill gusset
|
×
|
-
|
×
|
1.60 {0.0630}
|
|||
|
38
|
Rear pillar (inner) component
|
B pillar (inner, lower)
|
×
|
-
|
-
|
0.80 {0.031}
|
|
|
Rear pillar (inner, lower)
|
-
|
-
|
×
|
0.60 {0.024}
|
|||
|
Side brace
|
-
|
-
|
-
|
0.60 {0.024}
|
|||
|
Wheel housing (inner)
|
-
|
-
|
×
|
0.60 {0.024}
|
|||
|
Package gusset
|
-
|
×
|
-
|
1.20 {0.0472}
|
|||
|
39
|
Rear fender rain rail
|
-
|
-
|
×
|
0.75 {0.030}
|
||
|
40
|
Rear pillar (inner, upper)
|
-
|
-
|
-
|
0.60 {0.024}
|
||
|
41
|
Rear fender panel (lower)
|
-
|
-
|
×
|
0.65 {0.026}
|
||
|
42
|
Corner plate
|
-
|
-
|
×
|
0.65 {0.026}
|
||
|
43
|
Door panel (outer)
|
-
|
×
|
×
|
0.65 {0.026}
|
||
|
44
|
Rear fender panel
|
-
|
-
|
×
|
0.65 {0.026}
|
||
|
45
|
Trunk lid (outer panel) (*)
|
-
|
-
|
-
|
0.90 {0.035}
|
||
|
46
|
Dash panel (upper)
|
-
|
-
|
×
|
0.65 {0.026}
|
||
|
47
|
Front fender bracket
|
-
|
-
|
×
|
0.80 {0.031}
|
||
|
48
|
End plate
|
-
|
-
|
×
|
0.90 {0.035}
|
||
|
49
|
Cowl upper plate
|
Cowl upper plate (front)
|
×
|
-
|
×
|
1.20 {0.0472}
|
|
|
Cowl upper plate (rear)
|
-
|
-
|
×
|
1.40 {0.0551}
|
|||
|
50
|
Hole cover
|
-
|
-
|
×
|
0.60 {0.024}
|
||
|
51
|
Dash panel (lower)
|
-
|
-
|
×
|
0.80 {0.031}
|
||
|
52
|
Front header
|
×
|
-
|
×
|
1.00 {0.0394}
|
||
|
53
|
Rear deck panel
|
Bulkhead panel
|
-
|
-
|
-
|
1.00 {0.0394}
|
|
|
Package member
|
-
|
-
|
×
|
0.75 {0.030}
|
|||
|
Trim set bracket
|
-
|
-
|
-
|
1.80 {0.0709}
|
|||
|
54
|
Cowl side reinforcement
|
×
|
-
|
×
|
0.70 {0.028}
|
||
|
55
|
Cowl side junction
|
×
|
-
|
×
|
0.65 {0.026}
|
||
|
56
|
Cowl side panel
|
×
|
-
|
×
|
0.70 {0.028}
|
||
|
57
|
Front fender panel (*)
|
-
|
-
|
-
|
1.10 {0.0433}
|
||
|
58
|
Floor reinforcement
|
Front
|
×
|
-
|
-
|
2.00 {0.0787}
|
|
|
Rear
|
×
|
-
|
-
|
1.20 {0.0472}
|
|||
|
59
|
Tunnel reinforcement component
|
Dash side reinforcement
|
×
|
-
|
-
|
1.20 {0.0472}
|
|
|
Instrument panel bracket
|
×
|
-
|
-
|
1.80 {0.0709}
|
|||
|
60
|
Crossmember No.2
|
Crossmember No.2 (inner)
|
×
|
-
|
-
|
1.00 {0.0394}
|
|
|
Crossmember No.2 (outer)
|
-
|
×
|
-
|
1.60 {0.0630}
|
|||
|
61
|
Front floor component
|
Floor reinforcement
|
×
|
-
|
-
|
0.80 {0.031}
|
|
|
Front floor panel
|
-
|
-
|
×
|
0.60 {0.024}
|
|||
|
62
|
Front B frame
|
×
|
-
|
×
|
1.20 {0.0472}
|
||
|
63
|
Center floor panel component
|
Seat bracket
|
-
|
×
|
-
|
1.00 {0.0394}
|
|
|
Center floor panel
|
×
|
-
|
×
|
0.80 {0.031}
|
|||
|
Tunnel reinforcement (rear)
|
-
|
×
|
-
|
1.60 {0.0630}
|
|||
|
64
|
Crossmember No.3 component
|
Crossmember No.3
|
×
|
-
|
×
|
1.00 {0.0394}
|
|
|
Crossmember No.3 reinforcement
|
×
|
-
|
-
|
1.20 {0.0472}
|
|||
|
65
|
Rear floor panel
|
-
|
-
|
×
|
0.60 {0.024}
|
||
|
66
|
Crossmember No.4
|
-
|
×
|
×
|
0.80 {0.031}
|
||
|
67
|
Trunk floor panel
|
-
|
-
|
×
|
0.60 {0.024}
|
||
|
68
|
Rear side frame (front)
|
Rear side sill (inner)
|
×
|
-
|
×
|
1.20 {0.0472}
|
|
|
Rear side frame
|
×
|
-
|
×
|
1.00 {0.0394}
|
|||
|
Rear frame reinforcement
|
-
|
-
|
-
|
1.40 {0.0551}
|
|||
|
Rear suspension housing
|
-
|
×
|
×
|
2.30 {0.0906}
|
|||
|
69
|
Rear side frame (rear)
|
×
|
-
|
×
|
1.20 {0.0472}
|
||
|
70
|
Rear bumper bracket
|
×
|
-
|
×
|
1.60 {0.0630}
|
||
|
71
|
Rear side frame (upper, front)
|
×
|
-
|
-
|
0.90 {0.035}
|
||
|
72
|
Rear side frame (upper, rear)
|
×
|
-
|
-
|
0.80 {0.031}
|
||
|
73
|
Floor side panel No.1
|
×
|
-
|
-
|
1.60 {0.0630}
|
||
|
74
|
Rear frame reinforcement
|
×
|
-
|
×
|
1.20 {0.0472}
|
||
|
75
|
Floor side panel No.2
|
-
|
-
|
×
|
0.60 {0.024}
|
||
|
76
|
Rear end panel component
|
Rear end panel
|
-
|
-
|
×
|
0.60 {0.024}
|
|
|
Rear end member
|
-
|
-
|
-
|
0.65 {0.026}
|
|||
|
77
|
Light bracket (rear)
|
-
|
-
|
×
|
0.65 {0.026}
|
||
|
78
|
Rear fender gusset
|
-
|
-
|
×
|
0.60 {0.024}
|
||
|
79
|
Rear bumper bracket (side)
|
-
|
-
|
×
|
1.00 {0.0394}
|
||
|
80
|
Rear bumper bracket (center)
|
-
|
-
|
×
|
1.00 {0.0394}
|
||
