SHROUD PANEL COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008602400

Symbol Marks

amxuub00000168

Removal Procedure

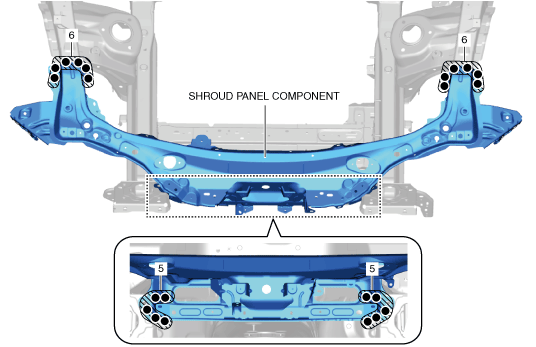

1.  Drill the 22 locations indicated shown in the figure.

amxzzb00000196

2.  Remove the shroud panel component.
