FRONT SIDE FRAME COMPONENT (FRONT) REMOVAL [PANEL REPLACEMENT]

id098008606700

Symbol Marks

amxuub00000067

Removal Procedure

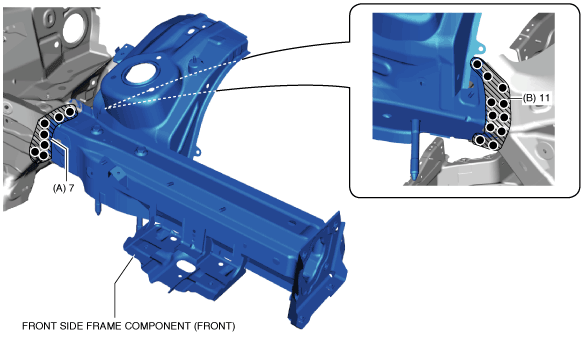

1.  Drill the 7 locations indicated by (A) shown in the figure.

2.  Drill the 11 locations indicated by (B) from front wheel housing shown in the figure.

amxuub00000068

3.  Remove the front side frame component (front).

Note

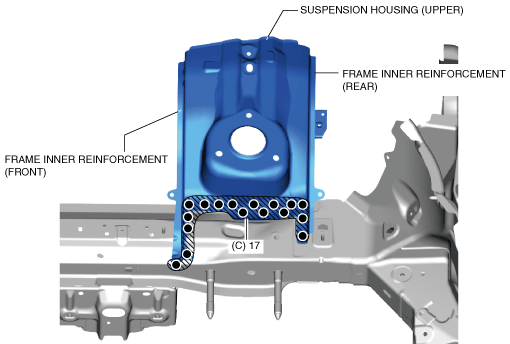

•  When removing the suspension housing (upper), frame inner reinforcement (front) and frame inner reinforcement (rear), drill the 17 locations indicated by (C).
