COWL SIDE REINFORCEMENT REMOVAL [PANEL REPLACEMENT]

id098008741700

Symbol Marks

amxuub00000122

Removal Procedure

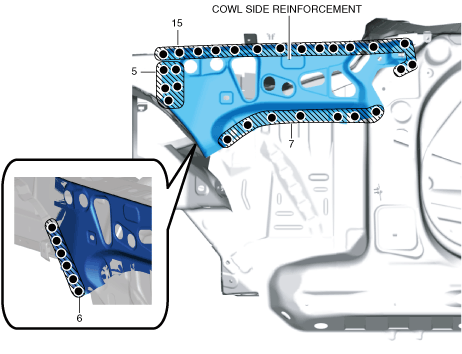

1.  Drill the 33 locations indicated shown in the figure.

amxzzb00000138

2.  Remove the cowl side reinforcement.
