REAR FENDER PANEL REMOVAL [PANEL REPLACEMENT]

id098008744900

Symbol Marks

amxuub00000151

Removal Procedure

Convertible top

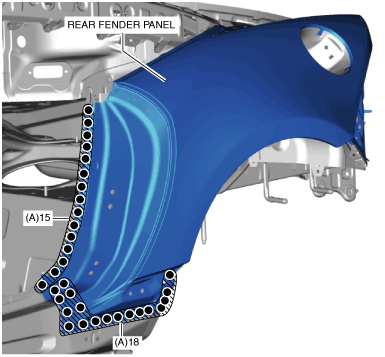

1.  Drill the 33 locations indicated by (A) shown in the figure.

amxuub00000215

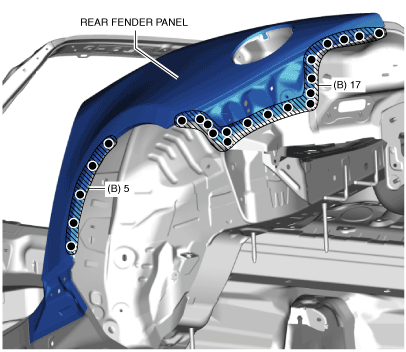

2.  Drill the 22 locations indicated by (B) shown in the figure.

amxuub00000152

3.  Drill the 3 locations indicated by (C) shown in the figure and bend the end of the rear deck panel in the direction of the arrow.

amxuub00000153

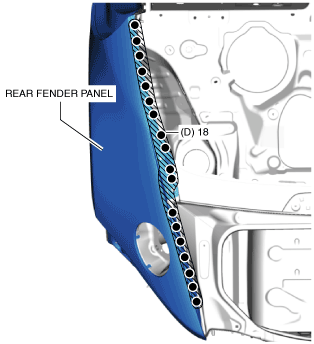

4.  Drill the 18 locations indicated by (D) shown in the figure, then remove the rear fender panel.

amxuub00000154

Retractable Hardtop

1.  Drill the 33 locations indicated by (A) shown in the figure.

amxuub00000215

2.  Drill the 22 locations indicated by (B) shown in the figure.

amxuub00000152

3.  Drill the 19 locations indicated by (C) shown in the figure, then remove the rear fender panel.

amxzzb00000077
