WHEEL APRON COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008746000

Symbol Marks

amxuub00000160

Removal Procedure

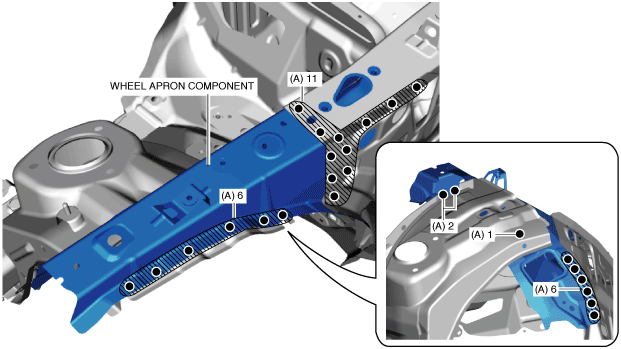

1.  Drill the 26 locations indicated by (A) shown in the figure.

amxuub00000161

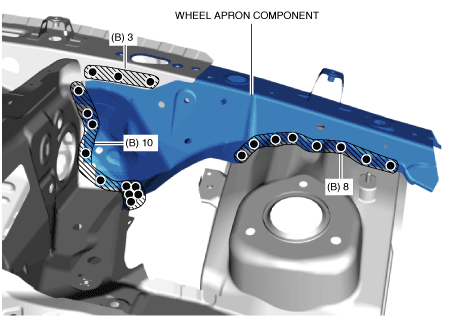

2.  Drill the 21 locations indicated by (B) shown in the figure.

amxuub00000231

3.  Remove the wheel apron component.
