SHROUD UPPER REINFORCEMENT REMOVAL [PANEL REPLACEMENT]

id098008927900

Symbol Marks

amxuub00000168

Removal Procedure

1.  Drill the 16 locations indicated shown in the figure.

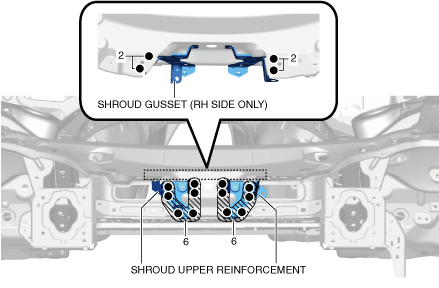

amxzzb00000162

2.  Remove the shroud upper reinforcement and the shroud gusset (RH side only) at the sametime.
