BUMPER BRACKET INSTALLATION [PANEL REPLACEMENT]

id098008999600

Symbol Marks

amxuub00000190

Installation Procedure

1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2. After temporarily installing new parts, make sure the related parts fit properly.

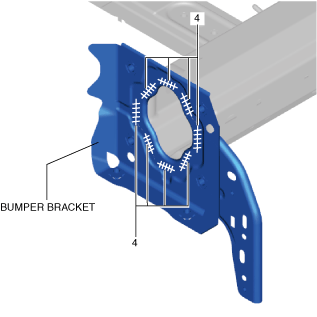

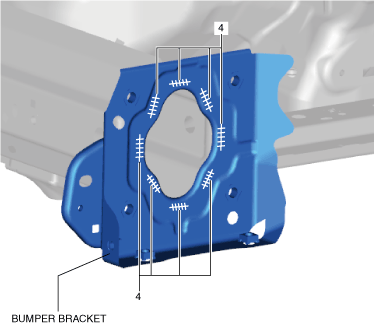

3. Plug weld the 8 locations indicated shown in the figure, then install the bumper bracket.

amxzzb00000132

amxzzb00000134
