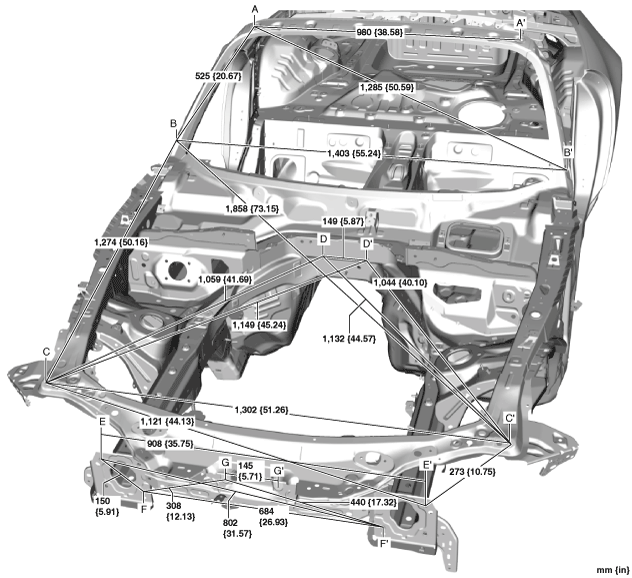

FRONT BODY DIMENSIONS (1) [DIMENSIONS]
id098010990100
amxuub00000034
|
amxuub00000035
|
|

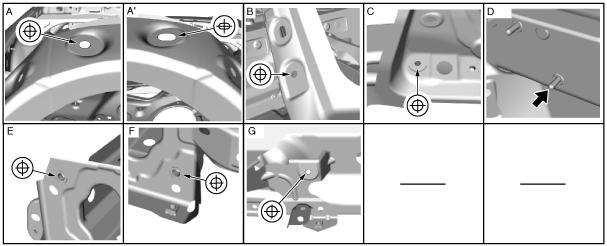

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front pillar (outer) datum hole
|
RH: φ12 {0.47}
LH: 12 × 18 {0.47 × 0.71}
|
|
B
|
A pillar garnish installation hole
|
φ10 {0.39}
|
|
C
|
Front fender panel installation nut
|
M6
|
|
D
|
Insulator bracket installation bolt
|
M6
|
|
E
|
Front bumper reinforcement installation nut
|
M10
|
|
F
|
Front bumper reinforcement installation nut
|
M10
|
|
G
|
Bonnet latch installation nut
|
M6
|
