FRONT BODY DIMENSIONS (2) [DIMENSIONS]
id098010990200
amxzzb00000068
|
amxuub00000238
|
|

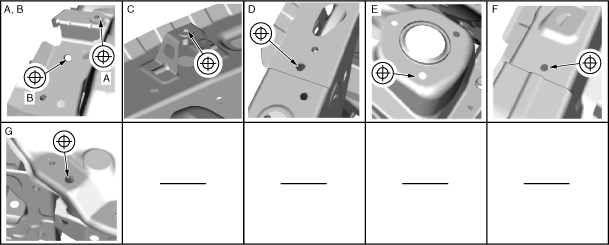

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front fender panel installation nut
|
M6
|
|
B
|
Bonnet hinge installation nut
|
M8
|
|
C
|
Front fender panel installation nut
|
M6
|
|
D
|
Cowl upper plate datum hole
|
φ10 {0.39}
|
|
E
|
Front suspension mount installation hole
|
φ13 {0.51}
|
|
F
|
Apron reinforcement (upper) datum hole
|
φ7 {0.3}
|
|
G
|
Front bumper installation hole
|
φ10 {0.39}
|
