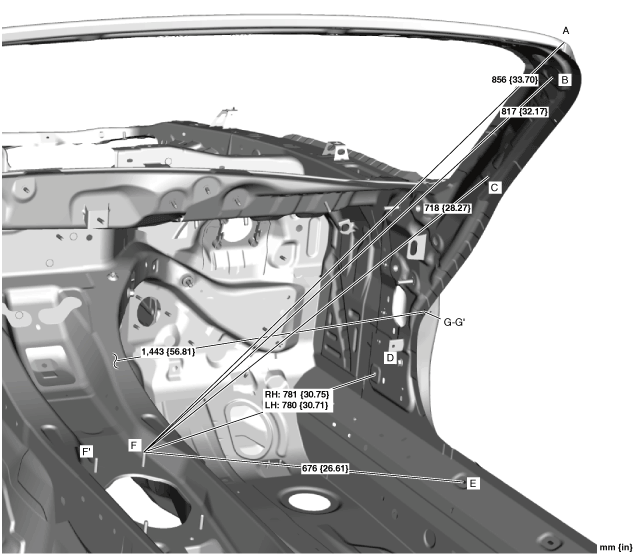

ROOM DIMENSIONS (1) [DIMENSIONS]
id098010990500
amxuub00000046
|
amxuub00000047
|
|

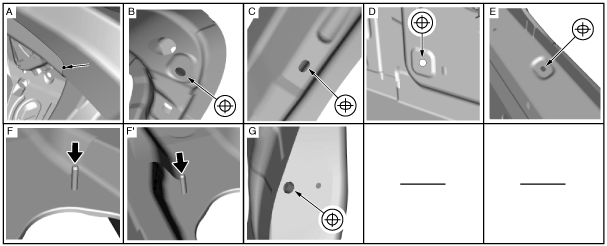

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Curved end of front head flange
|
—
|
|
B
|
Front pillar reinforcement (inner) datum hole
|
φ12 {0.47}
|
|
C
|
Front pillar (inner) datum hole
|
7 × 12 {0.3 × 0.47}
|
|
D
|
Cowl side gusset installation nut
|
M8
|
|
E
|
Side sill (inner) datum hole
|
7 × 12 {0.3 × 0.47}
|
|
F
|
Shift lever installation bolt
|
M6
|
|
G
|
Door checker installation hole
|
M8
|
