ROOM DIMENSIONS (2) [DIMENSIONS]
id098010990600
Convertible Top
amxuub00000050
|
ardjjb00000146
|
|

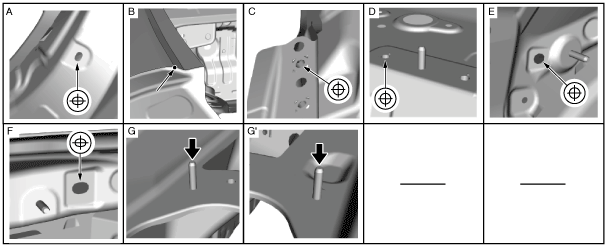

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Side sill (inner, rear) datum hole
|
7 × 12 {0.3 × 0.47}
|
|
B
|
Rear fender panel projection location
|
—
|
|
C
|
Corner junction component nut
|
M8
|
|
D
|
Seat back crossmember assembly installation nut
|
M10
|
|
E
|
Side brace datum hole
|
φ10 {0.39}
|
|
F
|
Side brace datum hole
|
10 × 14 {0.39 × 0.55}
|
|
G
|
Shift lever installation bolt
|
M6
|
Retractable Hardtop
amxzzb00000079
|
amxzzb00000080
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Side sill (inner, rear) datum hole
|
7 × 12 {0.3 × 0.47}
|
|
B
|
Rear fender panel projection location
|
—
|
|
C
|
Corner junction component nut
|
M8
|
|
D
|
Seat back crossmember assembly installation nut
|
M10
|
|
E
|
Side brace datum hole
|
φ10 {0.39}
|
|
F
|
Side brace datum hole
|
φ10.2 {0.402}
|
|
G
|
Shift lever installation bolt
|
M6
|
