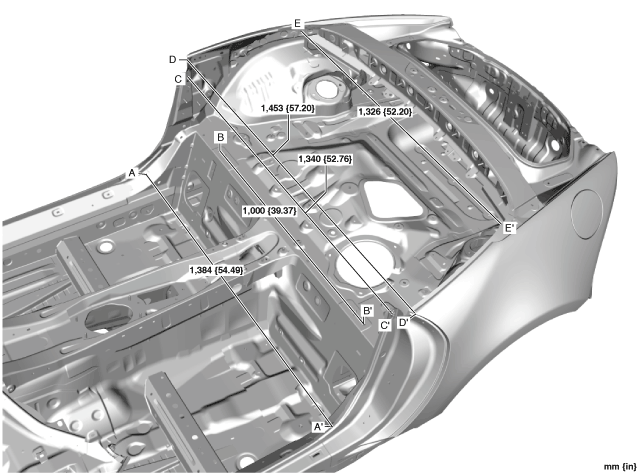

ROOM DIMENSIONS (3) [DIMENSIONS]
id098010990700
Convertible Top
amxuub00000053
|
amxzzb00000081
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Side sill (inner, rear) datum hole
|
7 × 12 {0.3 × 0.47}
|
|
B
|
Seat back crossmember assembly installation nut
|
M10
|
|
C
|
Corner junction component nut
|
M8
|
|
D
|
Rear fender panel projection location
|
—
|
|
E
|
Side brace datum hole
|
10 × 14 {0.39 × 0.55}
|
Retractable Hardtop
amxzzb00000082
|
amxzzb00000083
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Side sill (inner, rear) datum hole
|
7 × 12 {0.3 × 0.47}
|
|
B
|
Seat back crossmember assembly installation nut
|
M10
|
|
C
|
Corner junction component nut
|
M8
|
|
D
|
Rear fender panel projection location
|
—
|
|
E
|
Side brace datum hole
|
φ10.2 {0.402}
|
