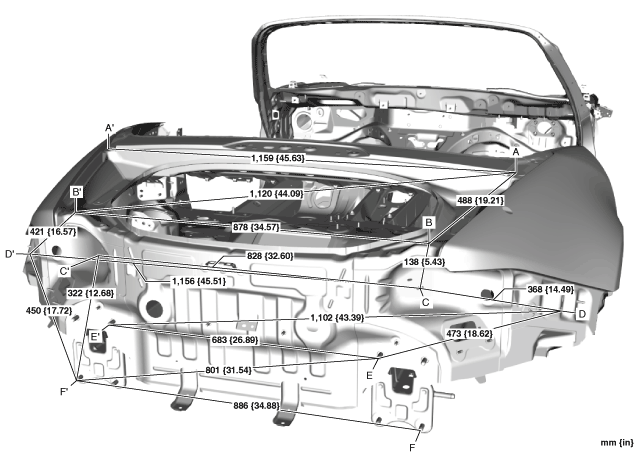

REAR BODY STRAIGHT-LINE DIMENSIONS [DIMENSIONS]
id098010990800

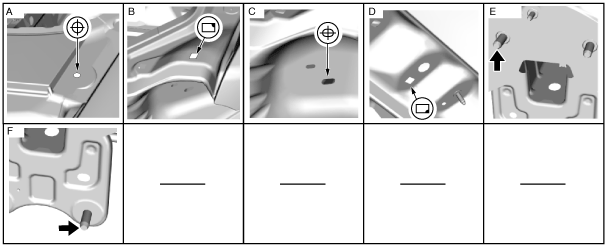

Convertible Top
amxuub00000196
|
amxuub00000197
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Rear deck plate base installation nut
|
M8
|
|
B
|
Rear combination light installation square hole
|
—
|
|
C
|
Rear combination light installation hole
|
8 × 19 {0.3 × 0.75}
|
|
D
|
Rear bumper slider installation square hole
|
—
|
|
E
|
Rear bumper reinforcement installation bolt
|
M10
|
|
F
|
Rear bumper reinforcement installation bolt
|
M10
|

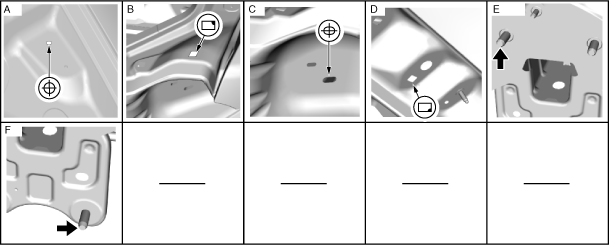

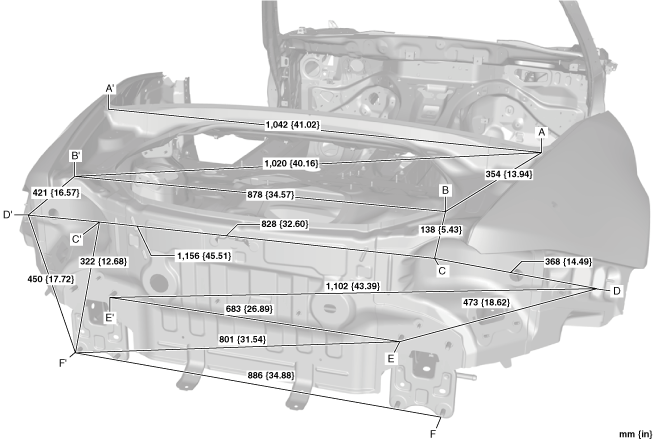

Retractable Hardtop
amxzzb00000084
|
amxzzb00000085
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Rear deck plate base installation nut
|
M8
|
|
B
|
Rear combination light installation square hole
|
—
|
|
C
|
Rear combination light installation hole
|
8 × 19 {0.3 × 0.75}
|
|
D
|
Rear bumper slider installation square hole
|
—
|
|
E
|
Rear bumper reinforcement installation bolt
|
M10
|
|
F
|
Rear bumper reinforcement installation bolt
|
M10
|
