CONSTRUCTION STANDARD VALUES [CONSTRUCTION STANDARD VALUES]
id0980c0740300

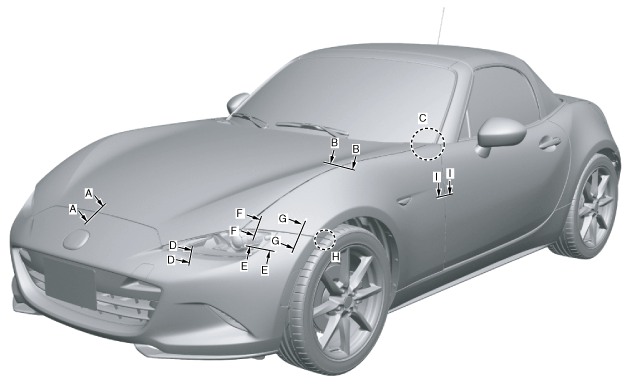

Front View
amxzzb00000191
|
amxuub00000061
|
|
No. |
Measurement part |
Standard values (mm {in}) |
Maximum values (mm {in}) |
Minimum values (mm {in}) |
Parallelism (mm {in}) |
|---|---|---|---|---|---|
|
A
|
1
|
3.5
{0.14}
|
5.3
{0.21}
|
1.7
{0.067}
|
2.0
{0.079}
|
|
2
|
0 {0}
|
2.0
{0.079}
|
–2.0
{–0.079}
|
-
|
|
|
B
|
3
|
3.8
{0.15}
|
4.8
{0.19}
|
2.8
{0.11}
|
1.0
{0.039}
|
|
4
|
–0.1
{–0.004}
|
0.9
{0.04}
|
–1.1
{–0.043}
|
-
|
|
|
C
|
5
|
0.3
{0.01}
|
1.8
{0.071}
|
–1.2
{–0.047}
|
-
|
|
D
|
6
|
1.8
{0.071}
|
3.3
{0.13}
|
0.3
{0.01}
|
-
|
|
E
|
7
|
1.8
{0.071}
|
3.3
{0.13}
|
0.3
{0.01}
|
1.5
{0.059}
|
|
F
|
8
|
3.8
{0.15}
|
3.8
{0.15}
|
0.5
{0.02}
|
-
|
|
G
|
9
|
0.5
{0.02}
|
1.3
{0.051}
|
0.5
{0.02}
|
-
|
|
10
|
0.5
{0.02}
|
1.2
{0.047}
|
–0.2
{–0.008}
|
-
|
|
|
H
|
11
|
0.1
{0.005}
|
1.6
{0.062}
|
–1.4
{–0.056}
|
-
|
|
I
|
12
|
3.8
{0.15}
|
4.8
{0.19}
|
3.0
{0.12}
|
1.0
{0.039}
|
|
13
|
–0.7
{–0.03}
|
0.3
{0.01}
|
–1.7
{–0.067}
|
-
|
Rear View

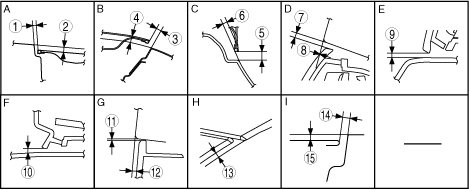

Convertible top
amxzzb00000038
|
ardjjb00000154
|
|
No. |
Measurement part |
Standard values (mm {in}) |
Maximum values (mm {in}) |
Minimum values (mm {in}) |
Parallelism (mm {in}) |
|---|---|---|---|---|---|
|
A
|
1
|
3.4
{0.13}
|
4.4
{0.17}
|
2.4
{0.094}
|
1.5
{0.059}
|
|
2
|
0 {0}
|
1.0
{0.039}
|
–1.0
{–0.039}
|
-
|
|
|
B
|
3
|
3.3
{0.13}
|
4.3
{0.17}
|
2.3
{0.091}
|
1.0
{0.039}
|
|
4
|
0 {0}
|
1.0
{0.039}
|
–1.0
{–0.039}
|
-
|
|
|
C
|
5
|
8.0
{0.31}
|
9.5
{0.37}
|
6.5
{0.26}
|
-
|
|
6
|
3.7
{0.15}
|
5.7
{0.22}
|
1.7
{0.067}
|
-
|
|
|
D
|
7
|
1.8
{0.071}
|
3.0
{0.12}
|
0.6
{0.02}
|
1.2
{0.047}
|
|
8
|
0.3
{0.01}
|
1.6
{0.064}
|
–1.0
{–0.39}
|
-
|
|
|
E
|
9
|
1.8
{0.071}
|
3.3
{0.13}
|
0.3
{0.01}
|
1.5
{0.059}
|
|
F
|
10
|
1.8
{0.071}
|
3.3
{0.13}
|
0.3
{0.01}
|
-
|
|
G
|
11
|
0.5
{0.02}
|
1.3
{0.051}
|
0.5
{0.02}
|
-
|
|
12
|
0.5
{0.02}
|
1.2
{0.047}
|
–0.2
{–0.008}
|
-
|
|
|
H
|
13
|
0 {0}
|
1.5
{0.059}
|
–1.5
{–0.059}
|
-
|
|
I
|
14
|
3.8
{0.15}
|
4.8
{0.19}
|
2.8
{0.11}
|
1.0
{0.039}
|
|
15
|
0 {0}
|
1.0
{0.039}
|
–1.0
{–0.039}
|
-
|

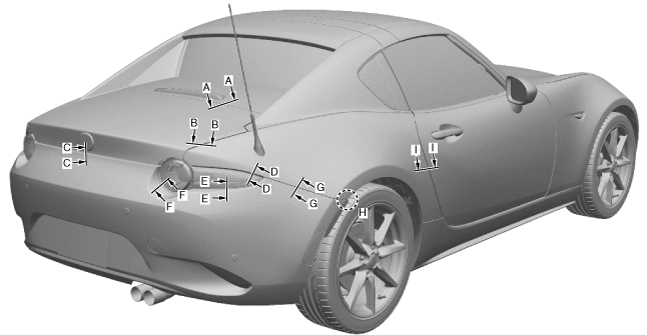

Retractable Hardtop
amxzzb00000128
|
ardjjb00000154
|
|
No. |
Measurement part |
Standard values (mm {in}) |
Maximum values (mm {in}) |
Minimum values (mm {in}) |
Parallelism (mm {in}) |
|---|---|---|---|---|---|
|
A
|
1
|
5.1
{0.20}
|
7.5
{0.30}
|
2.7
{0.10}
|
2.0
{0.079}
|
|
2
|
0 {0}
|
2.3
{0.090}
|
–2.3
{–0.12}
|
2.0
{0.079}
|
|
|
B
|
3
|
3.6
{0.14}
|
4.6
{0.18}
|
2.6
{0.10}
|
1.0
{0.039}
|
|
4
|
0 {0}
|
1.0
{0.039}
|
–1.0
{–0.039}
|
-
|
|
|
C
|
5
|
8.0
{0.31}
|
9.5
{0.37}
|
6.5
{0.26}
|
-
|
|
6
|
3.7
{0.15}
|
5.7
{0.22}
|
1.7
{0.067}
|
-
|
|
|
D
|
7
|
1.8
{0.071}
|
3.0
{0.12}
|
0.6
{0.02}
|
1.2
{0.047}
|
|
8
|
0.3
{0.01}
|
1.6
{0.064}
|
–1.0
{–0.039}
|
-
|
|
|
E
|
9
|
1.8
{0.071}
|
3.3
{0.13}
|
0.3
{0.01}
|
1.5
{0.059}
|
|
F
|
10
|
1.8
{0.071}
|
3.3
{0.13}
|
0.3
{0.01}
|
-
|
|
G
|
11
|
0.5
{0.02}
|
1.3
{0.051}
|
0.5
{0.02}
|
-
|
|
12
|
0.5
{0.02}
|
1.2
{0.047}
|
–0.2
{–0.008}
|
-
|
|
|
H
|
13
|
0 {0}
|
1.5
{0.059}
|
–1.5
{–0.059}
|
-
|
|
I
|
14
|
3.8
{0.15}
|
4.8
{0.19}
|
2.8
{0.11}
|
1.0
{0.039}
|
|
15
|
0 {0}
|
1.0
{0.039}
|
–1.0
{–0.039}
|
-
|
