i-ACTIVSENSE

id150000001000

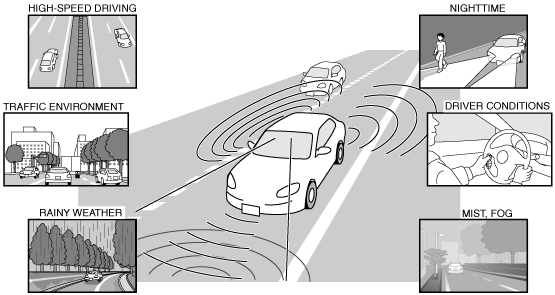

Outline

amxzzn00001241

System	Outline	Reference
High Beam Control (HBC) System	The High Beam Control (HBC) system turns the headlights HI off when the forward sensing camera (FSC) installed to the windshield recognizes a vehicle ahead and when traveling through towns and cities while the vehicle is being driven with the headlights HI turned on. Due to this, blinding of other vehicles from headlight glare is prevented and driver visibility is assured.	(See HIGH BEAM CONTROL (HBC) SYSTEM.)
Lane departure warning system (LDWS)	The Lane Departure Warning System (LDWS) recognizes vehicle lane lines on a road using the forward sensing camera (FSC) installed to the windshield, and if the vehicle departs from its lane unbeknownst to the driver, the system alerts the driver of the lane departure using a warning indication and warning sound.	(See LANE DEPARTURE WARNING SYSTEM (LDWS).)
Adaptive LED headlights	The adaptive LED headlights improve visibility by changing the headlight illumination range depending on the vehicle driving conditions and the surrounding conditions without switching the headlights between HI/LO.	(See ADAPTIVE LED HEADLIGHTS.)
Adaptive front lighting system (AFS)	The adaptive front lighting system (AFS) is a system which enhances the range of visibility when the headlights are turned on by pointing the optical axis of the headlights in the direction in which the steering wheel is operated according to the steering operation.	(See ADAPTIVE FRONT LIGHTING SYSTEM (AFS).)
Blind spot monitoring (BSM) system	The blind spot monitoring (BSM) system detects a vehicle in the blind-spot area at the rear of the vehicle to alert the driver of the possible collision with a target vehicle using the blind spot monitoring (BSM) indicator light on the outer mirror glass, the rear crossing traffic alert (RCTA) indicator light displayed on the rear view monitor screen, and the blind spot monitoring (BSM) warning alarm.	(See BLIND SPOT MONITORING (BSM) SYSTEM.)
Driver attention alert system	The driver attention alert system warns the driver using the warning display and sound if it detects the driver's lack of attentiveness.	(See DRIVER ATTENTION ALERT SYSTEM.)
Traffic sign recognition system (TSR)	The traffic sign recognition system (TSR) provides support for safe driving by displaying traffic signs on the multi-information display or by notifying the driver of excessive speed.	(See TRAFFIC SIGN RECOGNITION SYSTEM (TSR).)
Adjustable speed limiter	•  For the purpose of safety performance improvement, the adjustable speed limiter restricts unintended excess vehicle speed by allowing the driver to optionally set the maximum vehicle speed. •  The adjustable speed limiter restricts the engine output so that the vehicle speed does not exceed the set maximum vehicle speed even if the accelerator pedal is being depressed. •  The adjustable speed limiter does not operate simultaneously with the cruise control system.	(See ADJUSTABLE SPEED LIMITER.)

Pre-crash safety technology

System	Outline	Reference
Advanced Smart City Brake Support (Advanced SCBS)	With the Advanced Smart City Brake Support (Advanced SCBS), if a possible collision with a vehicle ahead or an obstruction is detected while the vehicle is traveling at a low speed, the system applies the brakes automatically to reduce the damage from the collision.	(See ADVANCED SMART CITY BRAKE SUPPORT (ADVANCED SCBS).)
Smart City Brake Support [Reverse] (SCBS R)	With the Smart City Brake Support [Reverse] (SCBS R) system, if a possible collision with vehicles/obstructions while reversing increases due to the driver not confirming the safety, the system applies the brakes automatically to reduce the damage from the collision.	(See SMART CITY BRAKE SUPPORT [REVERSE] (SCBS R).)

Structural View

amxzzn00001996
