SMART CITY BRAKE SUPPORT (SCBS) OFF INDICATOR LIGHT

id151300002500


Purpose/Function

•  The Smart City Brake Support (SCBS) OFF indicator light, built into the instrument cluster, informs the driver that Smart City Brake Support (SCBS) system has been disabled at driver descretion or system malfunction.

Construction

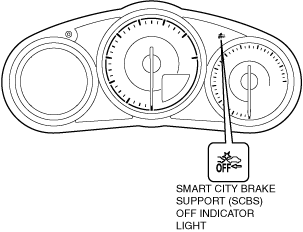

•  The Smart City Brake Support (SCBS) OFF indicator light is equipped in the instrument cluster.
amxzzn00002029

Operation

•  The Smart City Brake Support (SCBS) OFF indicator light illuminates under the following conditions:
―  When turn off the Smart City Brake Support (SCBS) by setting function of the center display.
―  Smart City Brake Support (SCBS) system malfunction.

Mode

Smart City Brake Support (SCBS) OFF indicator light illumination conditions
Enable the Smart City Brake Support (SCBS)
Not illuminated
Disable the Smart City Brake Support (SCBS)
Illuminated

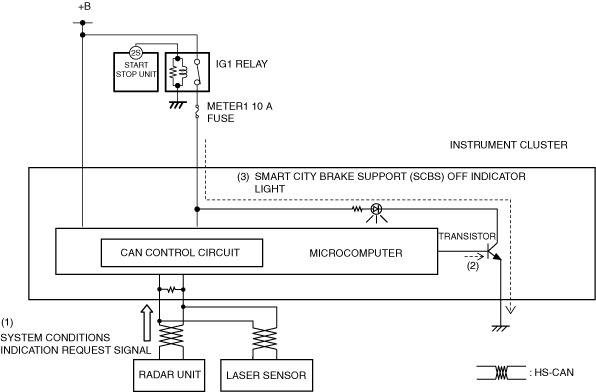

1.  The instrument cluster receives (1) the system conditions display request signal from the radar unit and/or the laser sensor via the CAN signal.

2.  The instrument cluster turns the transistor on (2) based on the system conditions display request signal.

3.  When the transistor turns on, a ground circuit with the Smart City Brake Support (SCBS) OFF indicator light is established, and the Smart City Brake Support (SCBS) OFF indicator light turns on (3).

am2uun00001565

Fail-Safe

•  Function not equipped.
