SHIFT FORK, SHIFT ROD AND REVERSE GEAR PARTS DISASSEMBLY
id051100010300

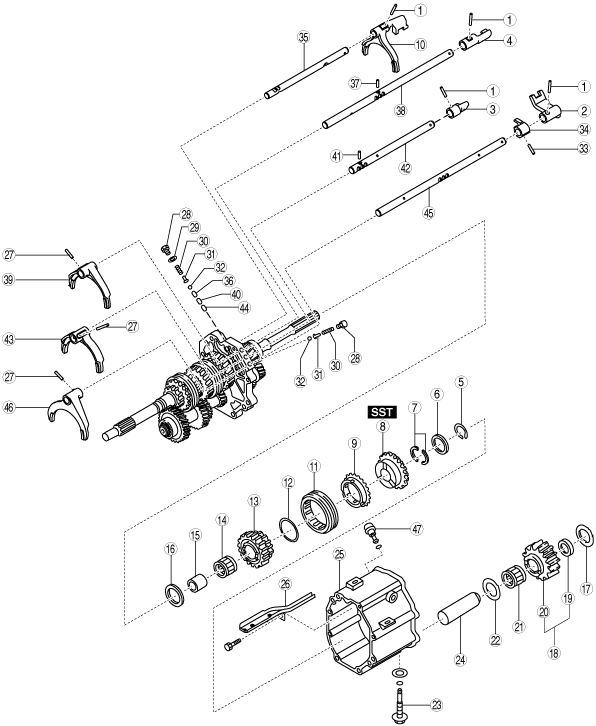

1. Disassemble in the order shown in the figure.
bmm8um00000045
|
|
1
|
Roll pin
|
|
2
|
5th/6th shift rod end
|
|
3
|
3rd/4th shift rod end
|
|
4
|
1st/2nd shift rod end
|
|
5
|
Snap ring
|
|
6
|
Washer
|
|
7
|
C-washer
|
|
8
|
Reverse synchronizer cone
|
|
9
|
Reverse synchronizer ring
|
|
10
|
Reverse shift fork
|
|
11
|
Reverse clutch hub sleeve
|
|
12
|
Reverse synchronizer key spring
|
|
13
|
Reverse gear
|
|
14
|
Bearing
|
|
15
|
Bearing race
|
|
16
|
Washer
|
|
17
|
Washer
|
|
18
|
Reverse idle gear component
|
|
19
|
Friction damper
|
|
20
|
Reverse idle gear
|
|
21
|
Bearing
|
|
22
|
Washer
|
|
23
|
Idle shaft pin
|
|
24
|
Reverse idle gear shaft
|
|
25
|
Intermediate housing
|
|
26
|
Oil guide
|
|
27
|
Roll pin
|
|
28
|
Cap plug
|
|
29
|
Washer
|
|
30
|
Spring
|
|
31
|
Spring seat
|
|
32
|
Detent ball
|
|
33
|
Roll pin
|
|
34
|
Stopper block
|
|
35
|
Reverse shift rod
|
|
36
|
Interlock pin (short)
|
|
37
|
Interlock pin (long)
|
|
38
|
1st/2nd shift rod
|
|
39
|
1st/2nd shift fork
|
|
40
|
Interlock pin (short)
|
|
41
|
Interlock pin (long)
|
|
42
|
3rd/4th shift rod
|
|
43
|
3rd/4th shift fork
|
|
44
|
Interlock pin (short)
|
|
45
|
5th/6th shift rod
|
|
46
|
5th/6th shift fork
|
|
47
|
Breather
(See Breather Disassembly Note.)
|
Reverse Synchronizer Cone Disassembly Note

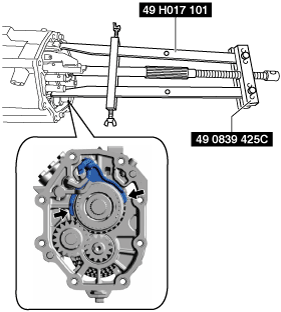

1. Install the SST tabs to the positions on the reverse shift fork shown in the figure.
bmm6jm00000017
|
2. Remove the reverse synchronizer cone, reverse synchronizer ring and reverse shift fork as a single unit using the SSTs.
Friction Damper Disassembly Note
1. Remove the friction damper using the SST and a tape-wrapped flathead screwdriver.
bmm6jm00000018
|
Interlock Pin (Short) and Interlock Pin (Long) Disassembly Note
1. Remove the short and long interlock pins using a magnet.
bmm8um00000009
|
Breather Disassembly Note
1. Detach tabs shown in the figure and remove the breather.
bmm8um00000046
|
