MAINSHAFT PARTS DISASSEMBLY

id051100010900

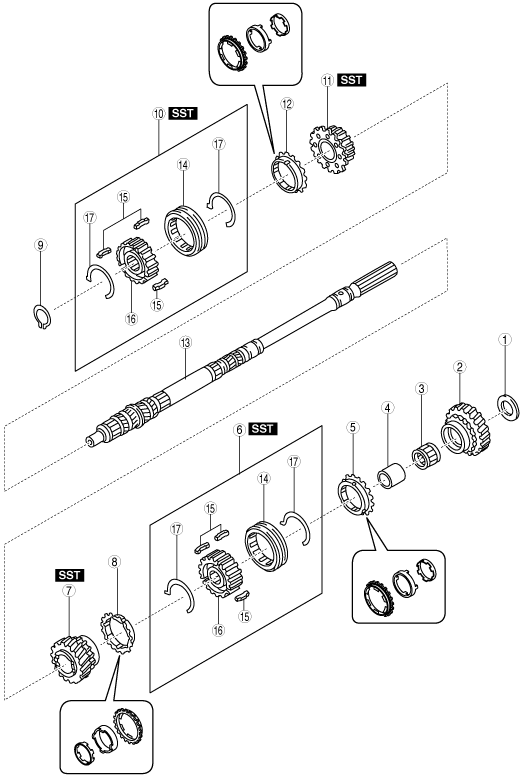

1.  Disassemble in the order shown in the figure.

bmm6jm00000035

1	Washer
2	1st gear
3	Bearing
4	Bearing race
5	1st synchronizer component
6	1st/2nd clutch hub component (See 1st/2nd Clutch Hub Component, 2nd Gear Disassembly Note.)
7	2nd gear (See 1st/2nd Clutch Hub Component, 2nd Gear Disassembly Note.)
8	2nd synchronizer component
9	Snap ring
10	5th/6th clutch hub component (See 5th/6th Clutch Hub Component, 5th Gear Disassembly Note.)
11	5th gear (See 5th/6th Clutch Hub Component, 5th Gear Disassembly Note.)
12	5th synchronizer component
13	Main shaft
14	Clutch hub sleeve
15	Synchronizer key
16	Clutch hub
17	Synchronizer key spring

1st/2nd Clutch Hub Component, 2nd Gear Disassembly Note

1.  Remove the 1st/2nd clutch hub component and the 2nd gear using the SST and a press.

bmm6jm00000036

Note

•  Use the SST with the side which has no height difference facing the 2nd gear.

5th/6th Clutch Hub Component, 5th Gear Disassembly Note

1.  Remove the 5th/6th clutch hub component and the 5th gear using the SST and a press.

bmm6jm00000037
