BEARING HOUSING COMPONENT DISASSEMBLY

id051100011200

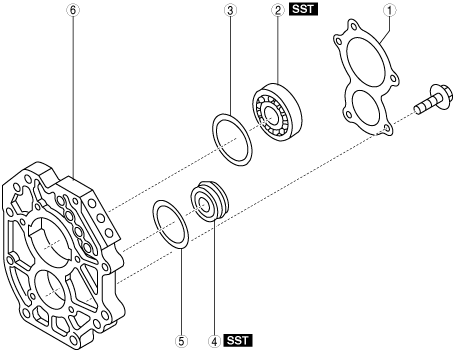

1.  Disassemble in the order shown in the figure.

bmm6jm00000038

1	Bearing cover
2	Main shaft front bearing (See Main Shaft Front Bearing Disassembly Note.)
3	Main shaft front bearing adjustment shim
4	Countershaft center bearing (See Countershaft Center Bearing Disassembly Note.)
5	Countershaft center bearing adjustment shim
6	Bearing housing

Main Shaft Front Bearing Disassembly Note

1.  Remove the main shaft front bearing using the SST and a press.

bmm8um00000032

Countershaft Center Bearing Disassembly Note

1.  Remove the countershaft center bearing using the SST and a press.

bmm8um00000033
