SERVICE CAUTIONS

id000000800200

Injury/damage Prevention Precautions

Protection of the Vehicle

•  Always be sure to cover fenders, seats and floor areas before starting work.

am6zzw00008910

Preparation of Tools and Measuring Equipment

•  Be sure that all necessary tools and measuring equipment are available before starting any work.

am6zzw00008911

Special Service Tools

•  Use special service tools or the equivalent when they are required.

am6zzw00008912

Malfunction Diagnosis System

Connection to malfunction diagnosis system

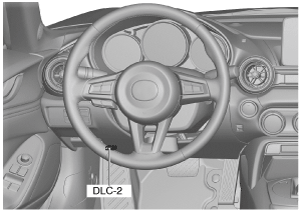

•  With the ignition switched off, connect the malfunction diagnosis system to the DLC-2 connector shown in the figure.

amxzzw00003410

Oil Leakage Inspection

Using UV light (black light)

1.  Remove any oil on the engine or transmission/transaxle.

Note

•  Referring to the fluorescent dye instruction manual, mix the specified amount of dye into the engine oil or transmission/transaxle oil.

2.  Pour the fluorescent dye into the engine oil or transmission/transaxle oil.

3.  Allow the engine to run for 30 min.

4.  Inspect for dye leakage by irradiating with UV light (black light), and identify the type of oil that is leaking.

5.  If no dye leakage is found, allow the engine to run for another 30 min. or drive the vehicle then reinspect.

6.  Find where the oil is leaking from, then make necessary repairs.

Note

•  To determine whether it is necessary to replace the oil after adding the fluorescent dye, refer to the fluorescent dye instruction manual.

Not using UV light (black light)

1.  Gather sample of the leaking oil using an absorbent white tissue.

am6zzw00008913

2.  Then, gather some samples of engine and transmission/transaxle oil onto a white cloth or piece of paper.

•  MT vehicles: Transmission/transaxle oil

•  AT vehicles: ATF

•  CVT vehicles: CVT fluid

3.  Compare the appearance and smell, and identify the type of oil that is leaking.

4.  Remove any oil on the engine or transmission/transaxle.

5.  Allow the engine to run for 30 min.

6.  Check the area where the oil is leaking, then make necessary repairs.

Negative Battery Cable Disconnection/Connection

Warning

•  Before removing the SRS air bag system-related parts, always disconnect the negative battery cable terminal and wait for 1 min. or more to allow the back-up power supply to deplete its stored power. (See AIR BAG SYSTEM SERVICE WARNINGS.)

•  Contact with the positive battery cable terminal could cause electrocution due to a short circuit and result in serious injury or death, or damage to vehicle parts. Do not contact the positive battery terminal when performing the procedure.

Caution

•  With the battery connected and the ignition switched ON, or if servicing is performed for a long period (10 min or more) with the ignition switched off.

•  If a door is opened/closed after disconnecting the negative battery cable, the door interlock open/close may not function and the door glass may be damaged. Always disconnect the negative battery cable with the doors on both sides opened.

Required procedure after negative battery cable disconnection/connection

System name	Conditions after disconnecting the negative battery cable	Required procedure		Reference
		Before disconnecting negative battery cable	After connecting negative battery cable
i-stop system	Specified information in the PCM cleared and the i-stop does not operate normally.	Verify PID “BATT_SOC” value and record. *1	Perform battery condition initial setting (i-stop setting). *2	(See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING).)
Tire pressure monitoring system (TPMS) [INDIRECT TIRE PRESSURE MONITORING SYSTEM (TPMS)]	The tire pressure monitoring system detection accuracy decreases.	—	Perform the tire pressure monitoring system initialization.	(See TIRE PRESSURE MONITORING SYSTEM INITIALIZATION PROCEDURE [INDIRECT TIRE PRESSURE MONITORING SYSTEM (TPMS)].)
Clock and audio	Clock display and audio system memory are reset.	Verify the setting content.	Set the verified content before disconnecting negative battery cable.	—

Switch The Power Supply Using The Push Button Start And Start The Engine

•  By pressing the push button start under the conditions shown in the table, the ignition can be switched.

amxzzn00001039

Removal of Parts

•  While correcting a problem, also try to determine its cause. Begin work only after first learning which parts and sub-components must be removed and disassembled for replacement or repair. After removing the part, plug all holes and ports to prevent foreign material from entering.

am6zzw00008916

Control module configuration (initialization setting)

Caution

•  If the configuration procedure is not completed correctly after replacing a control module in which configuration is required, the system will not operate normally. Therefore, perform the work in accordance with the replacement procedure in the workshop manual.

―  Automatic configuration

•  The main control module (built into instrument cluster) performs configuration of the new control module itself and automatically using the vehicle specification data sent via CAN lines.

―  Configuration based on vehicle information read/write data

•  Reads the vehicle information from the control module prior to replacement, and writes the vehicle information to a new control module.

―  Configuration by As-Built data:

•  Obtains the vehicle specification data when the vehicle is shipped from the factory, and writes the data to a new control module.

•  The configuration using As-Built data is used if the vehicle information cannot be read due to a damaged control module which is to be replaced, or if a DTC such as a configuration malfunction is detected.

•  If a control module having personalization features is configured using As-Built data, the settings personalized by the customer are initialized (to factory settings). In this case, verify the setting values made by the customer and change the personalized setting values using the “Programmable Parameters” from the M-MDS menu.

Disassembly

•  If the disassembly procedure is complex, requiring many parts to be disassembled, all parts should be marked in a place that will not affect their performance or external appearance, and identified so that reassembly can be performed easily and efficiently.

am6zzw00008917

Inspection During Removal, Disassembly

•  When removed, each part should be carefully inspected for malfunction, deformation, damage and other problems.

am6zzw00008918

Arrangement of Parts

•  All disassembled parts should be carefully arranged for reassembly.

am6zzw00008919

Cleaning of Parts

•  All parts to be reused should be carefully and thoroughly cleaned in the appropriate method.

am6zzw00008920

Warning

•  Using compressed air can cause dirt and other particles to fly out causing injury to the eyes. Wear protective eye wear whenever using compressed air.

Reassembly

•  Standard values, such as torques and certain adjustments, must be strictly observed in the reassembly of all parts.

am6zzw00008921

Oil seals	Cotter pins
Gaskets	Locknuts (Nylon nuts)
O-rings	Spring pins
Lock washers	—

―  Sealant and gaskets, or both, should be applied to specified locations. When sealant is applied, parts should be installed before sealant hardens to prevent leakage.

―  Oil should be applied to the moving components of parts.

―  Specified oil or grease should be applied at the prescribed locations (such as oil seals) before reassembly.

am6zzw00008922

Adjustment

•  Use suitable gauges and testers when making adjustments.

am6zzw00008923

Rubber Parts and Tubing

•  Prevent gasoline or oil from getting on rubber parts or tubing.

am6zzw00008924

Hose Clamps

•  When reinstalling, position the hose clamp in the original location on the hose and squeeze the clamp lightly with large pliers to ensure a good fit.

am6zzw00008925

Note

•  Follow the description in each section because the clamps which are used with the fuel-related system differ from the one indicated above.

Torque Formulas

•  When using a torque wrench-SST or equivalent combination, the specified torque must be recalculated due to the extra length that the SST or equivalent adds to the torque wrench. Recalculate the torque by using the following formulas. Choose the formula that applies to you.

am6zzw00008926

Torque Unit	Formula
N·m	N·m ×[L/(L+A)]
kgf·m	kgf·m ×[L/(L+A)]
kgf·cm	kgf·cm ×[L/(L+A)]
ft·lbf	ft·lbf ×[L/(L+A)]
in·lbf	in·lbf ×[L/(L+A)]

Vise

•  When using a vise, put protective plates in the jaws of the vise to prevent damage to parts.

am6zzw00008927

Dynamometer

Cautions on chassis dynamometer use

•  When inspecting and servicing the powertrain on the dynamometer or speedometer tester, pay attention to the following:

Note

•  If the engine cannot be stopped using the push button start, perform an emergency engine stop operation. (See Emergency Engine Stop Operation.)

―  Place a fan, preferably a vehicle-speed proportional type, in front of the vehicle.

―  Make sure the vehicle is in a facility with an exhaust gas ventilation system.

―  Keep the rear bumper cool by placing a cooling fan near the exhaust pipe so that the rear bumper does not get deformed by the heat from the exhaust.

―  Keep the area around the vehicle uncluttered so that heat does not build up.

―  Watch the water temperature gauge and do not overheat the engine.

―  Avoid added load to the engine and maintain normal driving conditions as much as possible.

Servicing on vehicles with ABS/DSC

•  If only the front or rear wheels are rotated using a chassis dynamometer, ABS HU/CM or the DSC HU/CM determines that the ABS/DSC is malfunctioning, detects a DTC, and turns on the related warning light at the same time.

•  If the light is turned on, remove the vehicle from the chassis dynamometer and switch the ignition OFF (LOCK). Then switch the ignition ON (engine on) and drive the vehicle at 10 km/h {6.2 mph} or more, and verify that the warning light turns off. The DTC is stored in the memory, therefore erase it by following the ON-BOARD DIAGNOSIS SYSTEM, Memory Clearing Procedure [ABS/][DSC].

(See CLEARING DTC [DSC HU/CM].)

Note

•  If the engine cannot be stopped using the push button start, perform an emergency engine stop operation. (See Emergency Engine Stop Operation.)

Emergency Engine Stop Operation

1.  Press and hold the push button start for approx. 3 s or more, or press it three times or more successively within approx. 1.5 s.

2.  The engine stops (position is ACC).

3.  Press the push button start to switch the ignition OFF.

SST

Example (SST List)

am5ezw00006750

Example (In text)

am6zzw00005599
