CYLINDER HEAD GASKET [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0110h8000300


Purpose, Function

•  The cylinder head gasket is installed between the cylinder head and cylinder block to prevent leakage of air-fuel mixture, combustion gas, engine oil, and engine coolant.

Construction


SKYACTIV-G 1.5

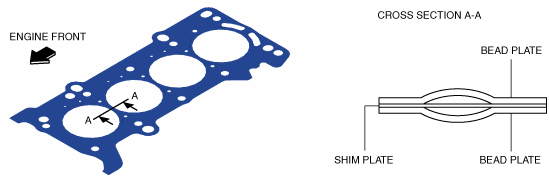

•  A three-layer type metal gasket has been adopted for the cylinder head gasket.
amxzzn00000740


SKYACTIV-G 2.0

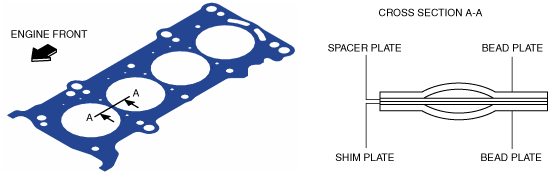

•  A four-layer type metal gasket has been adopted for the cylinder head gasket.
amxuun00001105
