CAMSHAFT [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0110h8001400


Purpose, Function

•  The camshaft is rotated by receiving the rotation force of the crankshaft via the timing chain. The valve is opened and closed according to the cam shape at this time.

Construction

•  The camshaft is located on the cylinder head.
amxuun00001119
•  The camshaft has the following parts shown in the figure.
amxuun00001120
•  The intake camshaft is a five-bearing type and the exhaust camshaft is a six-bearing type.

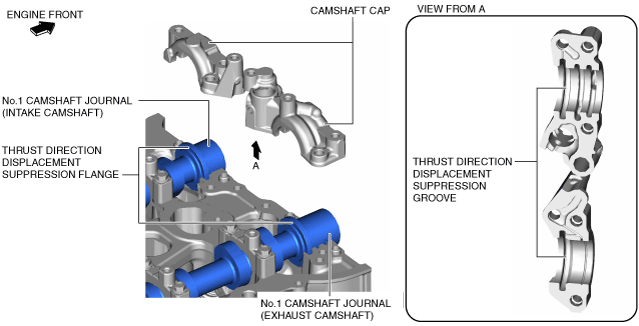

•  The camshaft thrust force is suppressed by the No.1 journal.
amxuun00001121

Valve timing

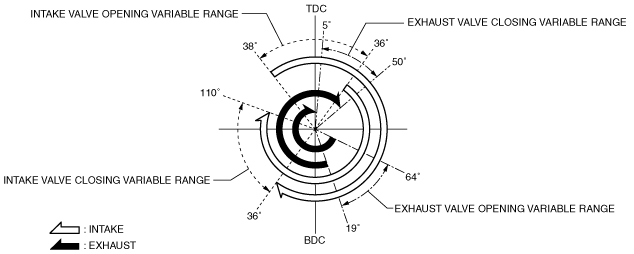

SKYACTIV-G 1.5
amxzzn00000734

Item

Specification
Valve timing
IN
Open
(°)
BTDC 38—ATDC 36
Close
(°)
ABDC 36—ABDC 110
EX
Open
(°)
BBDC 64—BBDC 19
Close
(°)
ATDC 5—ATDC 50

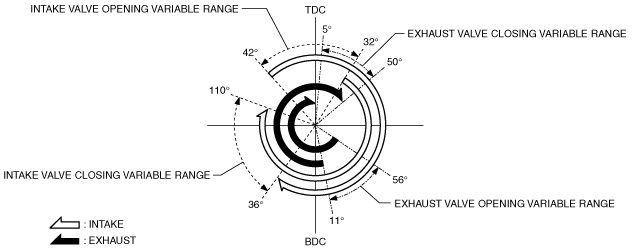

SKYACTIV-G 2.0
amxuun00001122

Item

Specification
Valve timing
IN
Open
(°)
BTDC 42—ATDC 32
Close
(°)
ABDC 36—ABDC 110
EX
Open
(°)
BBDC 56—BBDC 11
Close
(°)
ATDC 5—ATDC 50
