CYLINDER HEAD COVER [SKYACTIV-G 1.5, SKYACTIV-G 2.0]
id0110h8105000
Purpose, Function
• The cylinder head cover prevents foreign material penetration, engine oil spatter, and reduces engine valve system noise.
• The oil baffle plate reduces engine oil consumption by separating the engine oil from the blow-by gas.
Construction
• The cylinder head cover is made of aluminum alloy with reduced thickness to achieve weight reduction and rounded edges to facilitate buffing.

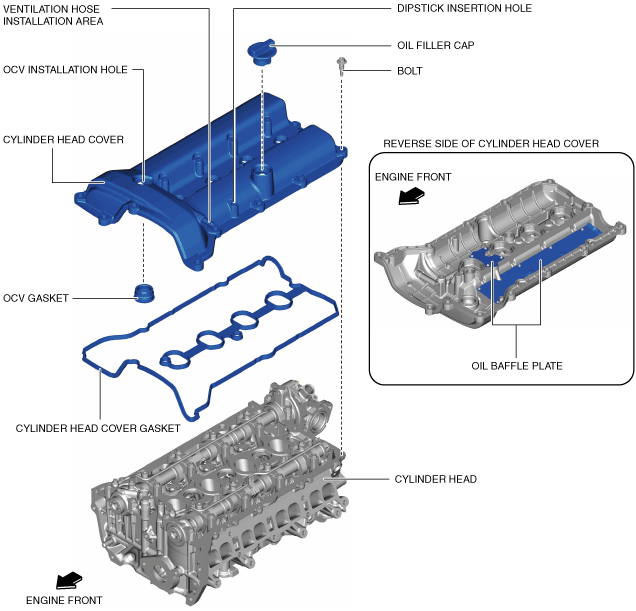

• The cylinder head cover consists of the following parts:
