SEAL COVER REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0110h8805200

Removal

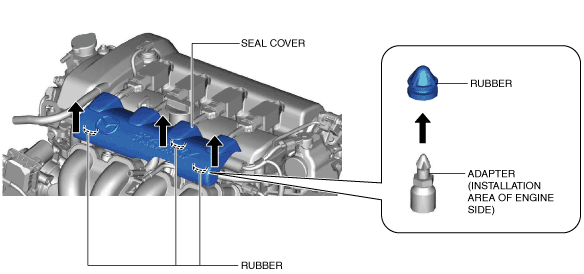

1.  Pull up the seal cover and remove the seal cover rubber from the adapter on the engine side. (3 locations)

amxuuw00004459

Installation

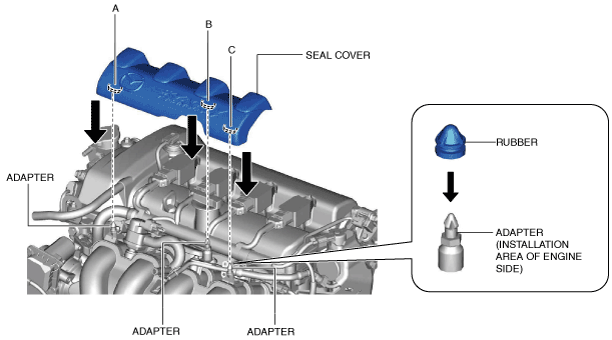

1.  Align the seal cover rubber with the engine side adapters and insert seal cover parts A, B and C by pressing them with your hand.

amxzzw00003034
