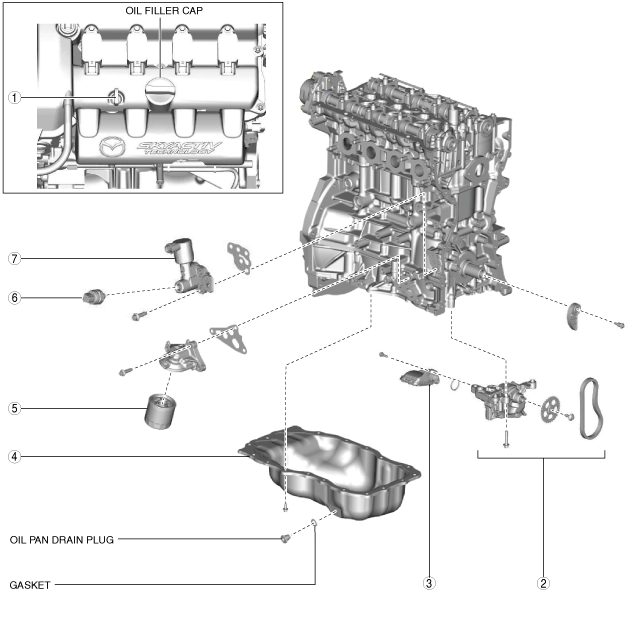

LUBRICATION SYSTEM LOCATION INDEX [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0111i0800100

amxuuw00004224

1	Dipstick (See ENGINE OIL LEVEL INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See ENGINE OIL REPLACEMENT [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
2	Oil pump component (See OIL PUMP REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
3	Oil strainer (See OIL PUMP REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
4	Oil pan (See OIL PAN REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
5	Oil filter (See OIL FILTER REPLACEMENT [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
6	Oil pressure switch (See OIL PRESSURE INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
7	Engine oil solenoid valve (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See ENGINE OIL SOLENOID VALVE INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
