AIR CLEANER [SKYACTIV-G 1.5, SKYACTIV-G 2.0]
id0113zg003500
Purpose, Function
• The air cleaner prevents engine internal damage caused by the penetration of dust or foreign matter into the intake air.
Construction

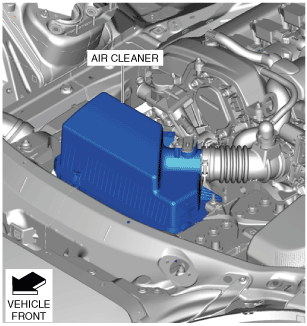

• The air cleaner is located on the front side of the engine.

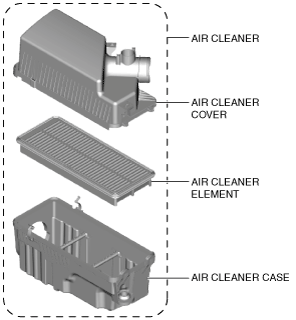

• The air cleaner consists of the air cleaner case, air cleaner cover, and air cleaner element.

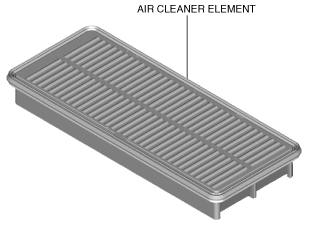

• Non-woven fabric (dry type) air cleaner element has been adopted to remove dust and foreign matter in the intake air.
