Caution
• When removing the high pressure fuel pipe, damage to the end of the high pressure fuel pipe may occur because the clearance between the high pressure fuel pump and the high pressure fuel pipe is small. Be very careful when handling the end of the high pressure fuel pipe so as not to damage it.
• Be careful not to dent or scratch the high pressure fuel pipe coating when using the SST.

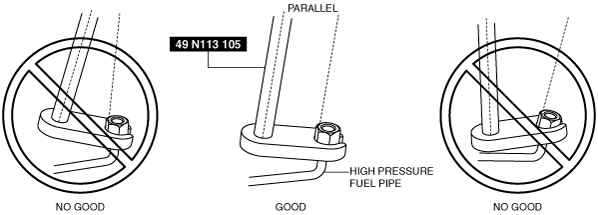

• Insert the fuel pipe nut at a level angle to the SST. If the fuel pipe nut is inserted at an angle to the SST, the torque gauge value of the torque wrench will differ from the actual torque applied to the nut.
