QUICK RELEASE (FUEL SYSTEM) CONNECTOR [SKYACTIV-G 1.5, SKYACTIV-G 2.0]


id0114zg003800


Purpose, Function

•  Serviceability has been improved by easy disconnection/connection of quick release connector.

Construction

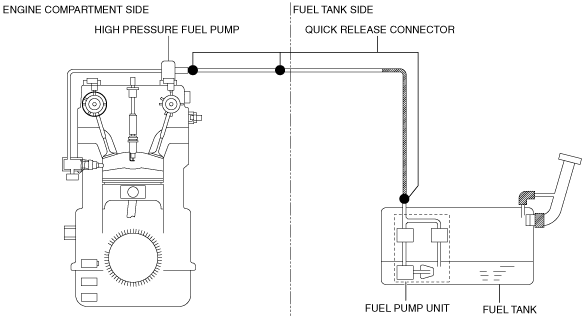

•  Quick release connectors are installed at the following locations.
amxzzn00001080
•  An SST is not used with this type of quick release connector.
•  Consists of a retainer and O-ring.
•  The quick release connector is integrated with the fuel hose and therefore cannot be disassembled.

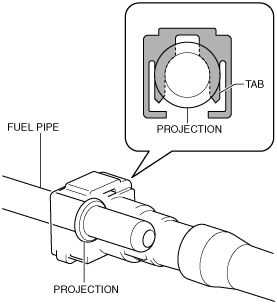

•  The hose does not pull out because the retainer tabs become caught against the ring projection of the fuel pipe.
amxzzn00001081

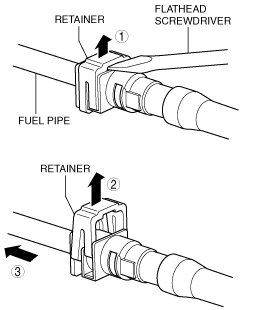

•  When removing the fuel hose, remove the retainer using a flathead screwdriver as shown in the figure.
amxzzn00001082
