RETURNLESS FUEL SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0114zg103900

Outline

• The returnless fuel system adjusts the fuel amount (fuel pressure) ejected from the fuel pump, and reduces the occurrence of evaporative gas by not discharging surplus fuel.

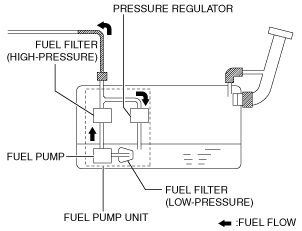

System Diagram

amxzzn00001086

Structure

• The returnless fuel system consists of the following parts:

Part name

Reference

Fuel filter (low-pressure)

(See FUEL PUMP UNIT [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

Fuel filter (high-pressure)

Pressure regulator

Fuel pump

Part name	Reference
Fuel filter (low-pressure)	(See FUEL PUMP UNIT [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Fuel filter (high-pressure)
Pressure regulator
Fuel pump

Operation

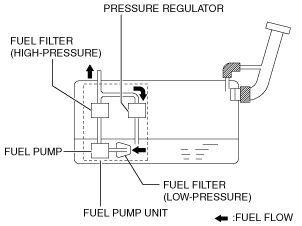

• Fuel in the fuel tank is pumped out through the fuel filter (low-pressure) by the fuel pump, filtered by the fuel filter (high-pressure), and then regulated to a specified pressure by the pressure regulator. The regulated fuel is sent to the high pressure fuel pump, and unnecessary regulated fuel is returned from the pressure regulator to the fuel tank.

amxzzn00001087
