FUEL TANK [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0114zg104100


Purpose, Function

•  The fuel tank stores fuel safely.

Construction

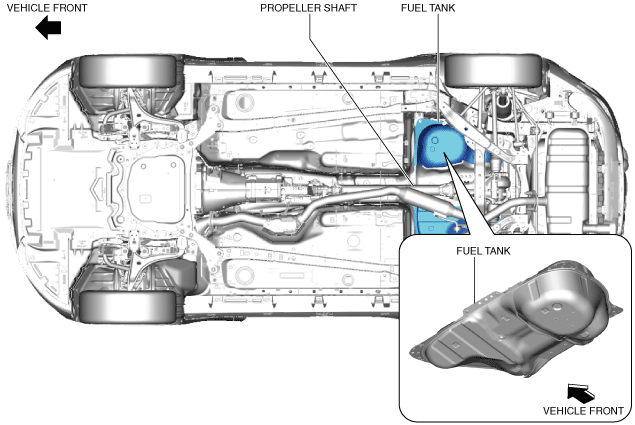

•  The fuel tank is located at the rear of the vehicle.
•  The fuel tank is a saddle type because there is a propeller shaft.
amxzzn00001088
•  The fuel tank is made of steel.

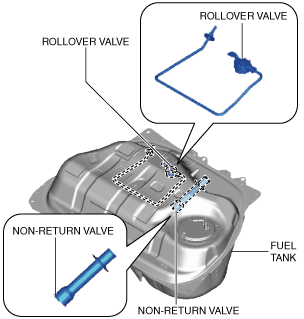

•  The following parts are integrated in the fuel tank.
amxzzn00001089
―  Non-return valve
(See NON-RETURN VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
―  Rollover valve
(See ROLLOVER VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
