FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0114zg801000

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

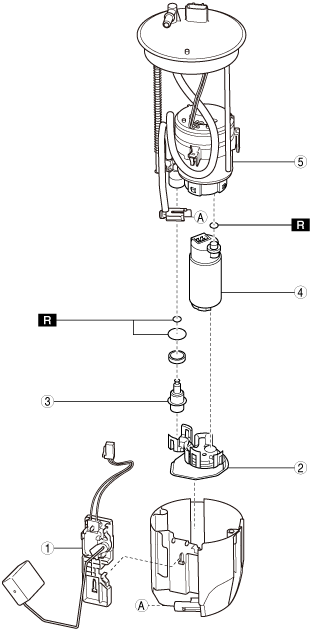

amxuuw00005180

1	Fuel gauge sender unit
2	Fuel filter (low-pressure)
3	Pressure regulator
4	Fuel pump
5	Fuel filter (high-pressure)
