EXHAUST SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0115zh125800

Outline

• To achieve an engine with a high compression ratio, 4-2-1 type exhaust pipes have been adopted for the exhaust manifold and residual exhaust gas in each cylinder is prevented.

• By integrating the exhaust manifold and the catalytic converter (WU-TWC), the distance from the combustion chamber to the catalytic converter has been shortened. Because the high temperature exhaust gas passes the catalytic converter, quick warming (activation) of the catalytic converter has been enabled and the purification rate of the exhaust gas has been enhanced.

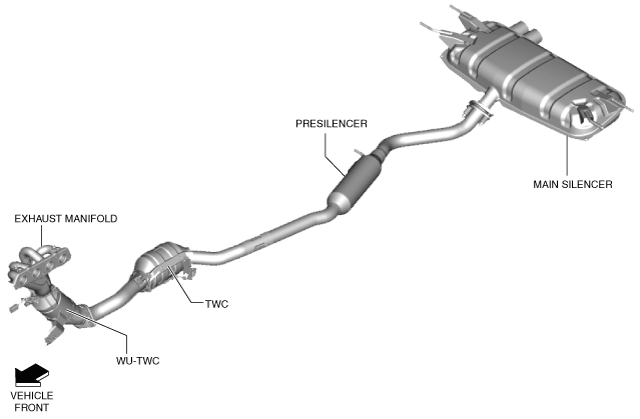

Structural View

amxuun00001344

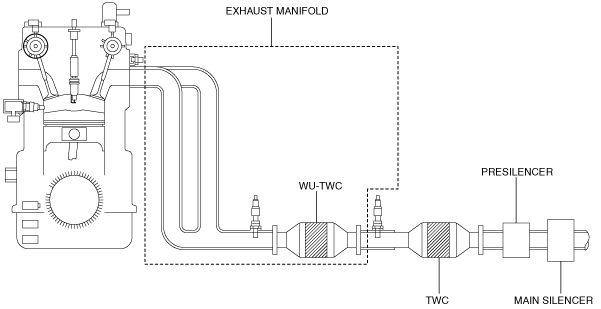

System Diagram

amxuun00001345

Structure

• The exhaust system consists of the following parts:

Part name

Reference

Exhaust manifold

(See EXHAUST MANIFOLD [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

TWC

(See CATALYTIC CONVERTER [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

WU-TWC

Presilencer

(See PRESILENCER [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

Main silencer

(See MAIN SILENCER [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

Part name	Reference
Exhaust manifold	(See EXHAUST MANIFOLD [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
TWC	(See CATALYTIC CONVERTER [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
WU-TWC	(See CATALYTIC CONVERTER [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Presilencer	(See PRESILENCER [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Main silencer	(See MAIN SILENCER [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
