CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0116zj096400

1. Remove in the order indicated in the table.

amxuuw00005251

2. Install in the reverse order of removal.

Charcoal Canister Removal Note

1. Release the lock as shown in the figure.

amxuuw00005252

2. Remove the charcoal canister.

Charcoal Canister Installation Note

1. Install the charcoal canister as shown in the figure.

amxuuw00005253

Evaporative Hose No.3 Installation Note

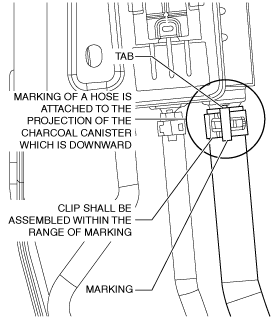

1. Connect the evaporative hose No.3 as shown in the figure.

amxuuw00005254

Evaporative Hose No.1 Installation Note

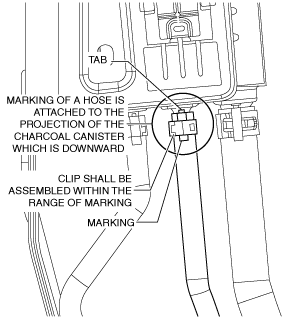

1. Connect the evaporative hose No.1 as shown in the figure.

amxuuw00005255

Evaporative Hose No.2 Installation Note

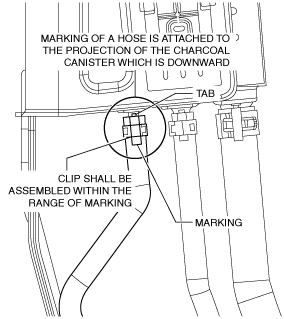

1. Connect the evaporative hose No.2 as shown in the figure.

amxuuw00005256

1	Evaporative hose No.2 (See Evaporative Hose No.2 Installation Note.)
2	Evaporative hose No.1 (See Evaporative Hose No.1 Installation Note.)
3	Evaporative hose No.3 (See Evaporative Hose No.3 Installation Note.)
4	Charcoal canister (See Charcoal Canister Removal Note.) (See Charcoal Canister Installation Note.)
5	Bracket
