•  The purge solenoid valve introduces evaporative gas absorbed by the charcoal canister to the intake manifold.

•  The purge solenoid valve opens/closes the valve according to the control signal from the PCM.

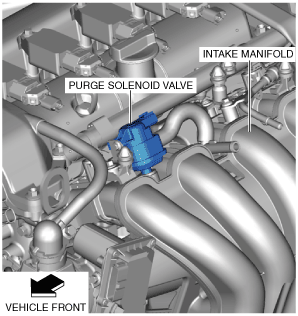

•  The purge solenoid valve is located on the intake manifold.

amxuun00001520

•  The purge solenoid valve consists of a coil, spring, and plunger.

amxuun00001521

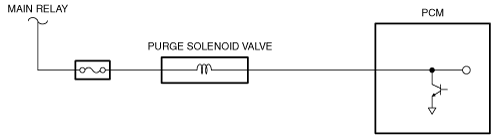

•  The coil is energized and the plunger is operated to open/close the purge solenoid valve according to the control signal from the PCM.

amxuun00001522

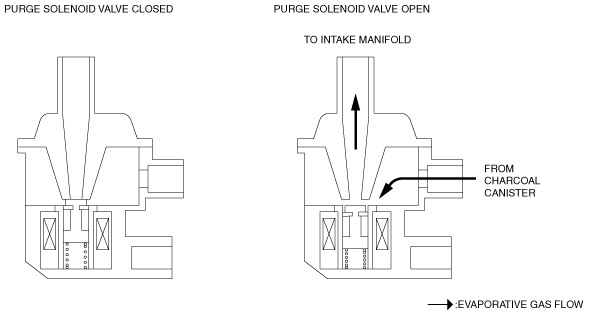

•  When the purge solenoid valve is open, evaporative gas flows from the charcoal canister to the intake manifold side.

Purge solenoid valve open/closed view

amxuun00001523

•  For evaporative purge control details, refer to the [CONTROL SYSTEM]. (See PURGE CONTROL [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

•  Not applicable
