EVAPORATIVE CHAMBER [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0116zj156800

Purpose, Function

• Prevents water and dust penetration when air is taken into the charcoal canister.

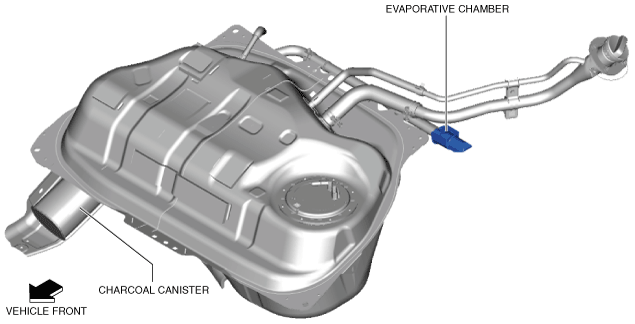

Construction

• The evaporative chamber is installed to the side of the charcoal canister.

amxuun00001556

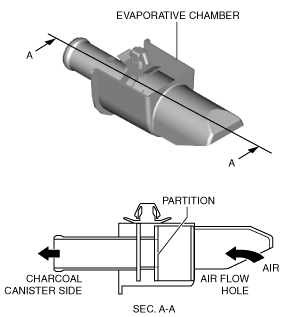

Operation

• Penetration of water and dust from the airflow hole is prevented by setting a partition to protect the charcoal canister.

amxuun00001557
