CHECK VALVE INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0116zj189900

1.  Remove the check valve. (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

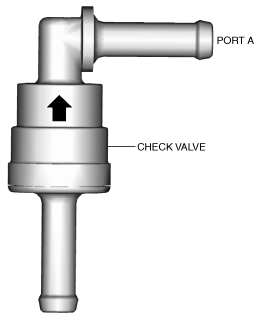

2.  Verify that there is no airflow when positive pressure is applied to port A.

amxuuw00005262

•  If there is airflow, replace the check valve. (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

3.  Verify that there is no airflow when negative pressure is applied to port A.

•  If there is no airflow, replace the check valve. (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
