EVAPORATIVE CHAMBER REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0116zj809800

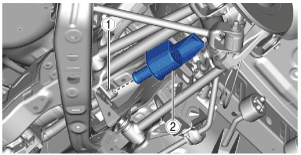

1. Remove in the order indicated in the table.

amxzzw00003452

1

Evaporative hose No.3

(See Evaporative Hose No.3 Installation Note.)

2

Evaporative chamber

2. Install in the reverse order of removal.

Evaporative Hose No.3 Installation Note

1. Install the evaporative hose as shown in the figure.

amxzzw00003453

1	Evaporative hose No.3 (See Evaporative Hose No.3 Installation Note.)
2	Evaporative chamber
