BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0117008005t2


Operation After Replacing Battery (With i-stop)

Note
•  If the battery charge/discharge flow (number of times battery can operate) exceeds the specification, a DTC is recorded and the i-stop warning light (amber) flashes. If the battery charge/discharge flow (number of times battery can operate) exceeds the specification, replace the battery with a new one.
•  When replacing the battery, perform the following procedure: When replacing the PCM simultaneously, perform the PCM configuration first. (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-G 1.5, SKYACTIV-G 2.0].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

Step

Action
1
Switch the ignition ON (engine off).
2
Shift the selector lever to the N position. (AT)
Shift the shift lever to the neutral position. (MT)
3
Perform the following work with the brake pedal depressed.
1.  Depress the accelerator pedal for 5 s or more.
2.  Verify that the charging system warning light and the master warning light flash.
3.  Depress and release the accelerator pedal 3 times.
4.  Verify that the charging system warning light and the master warning light turn off.
4
Switch the ignition off and disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
5
Verifying battery condition initialization setting (i-stop setting). (See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING).)


Battery Removal/Installation

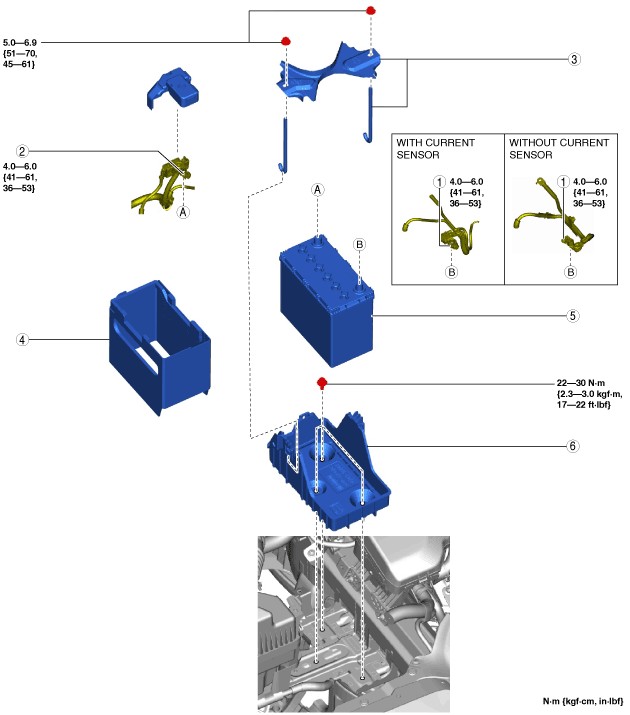

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

amxzzw00002979

1
Negative battery cable
(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
(See Negative battery cable connection note.)
2
Positive battery cable
3
Battery clamp
(See Battery clamp installation note.)
4
Battery box
(See Battery box installation note.)
5
Battery
6
Battery tray
(See Battery tray removal note.)
(See Battery tray installation note.)


Battery tray removal note

1.  Remove the wiring harness clip from the battery tray.

amxzzw00002980

2.  Remove the battery tray.


Battery tray installation note

1.  Set the battery tray to the installation position.

2.  Tighten the battery tray installation bolts in the order shown in the figure.

amxuuw00004285

Tightening torque
22—30 N·m {2.3—3.0 kgf·m, 17—22 ft·lbf}

3.  Install the wiring harness clip to the battery tray.

amxzzw00002980


Battery box installation note

1.  Install the battery box so that the side with the larger notch is pointed at the engine side.

am3zzw00015052


Battery clamp installation note

1.  Install the battery clamp in the direction shown in the figure.

amxuuw00004286


Negative battery cable connection note

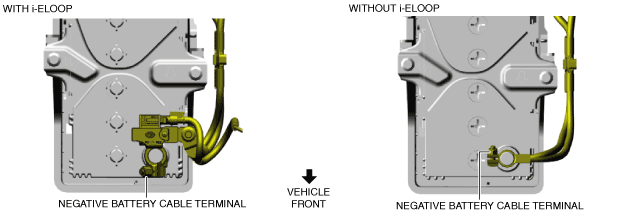

1.  Connect the negative battery cable terminal in the direction shown in the figure.

amxzzw00002981
