SPARK PLUG [SKYACTIV-G 1.5, SKYACTIV-G 2.0]
id0118i5101400
Purpose, Function
• The spark plug generates spark and ignites the compressed air-fuel mixture in the combustion chamber.
• Exclusive SKYACTIV-G iridium spark plugs have been adopted to improve excellent ignition performance and durability.
Construction

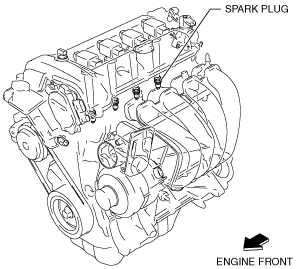

• The spark plugs are located on the top of each cylinder head combustion chamber.
• The core of the flame has increased and the ignition performance has been improved by the following:
-
― extreme thinning of the center electrode
― adopting highly durable iridium to the center electrode
― thinning the ground electrode
― adopting a platinum chip to the ground electrode
