STARTER INTERLOCK SWITCH [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0119j1133000


Purpose, Function

•  The starter interlock prevents a false start of the vehicle at engine start and assures safety. If the clutch pedal is not depressed, engine starting is inhibited.

Construction

•  The starter interlock switch is located on the clutch pedal.

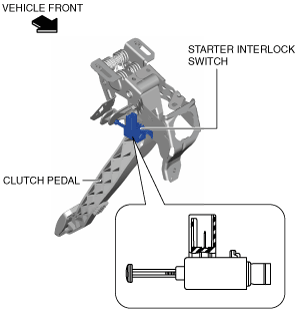

amxuun00001026

Operation

•  The starter interlock switch rod is pressed by the depression of the clutch pedal. At this time, the starter interlock switch is turned on, and by establishing a circuit, engine starting (starter starting) permission is transmitted to the PCM and start stop unit.

Clutch pedal
Starter interlock switch rod condition
Starter interlock switch
Engine start
Release
Release
OFF
Disabled
Depressed
Pressed condition
ON
Enabled

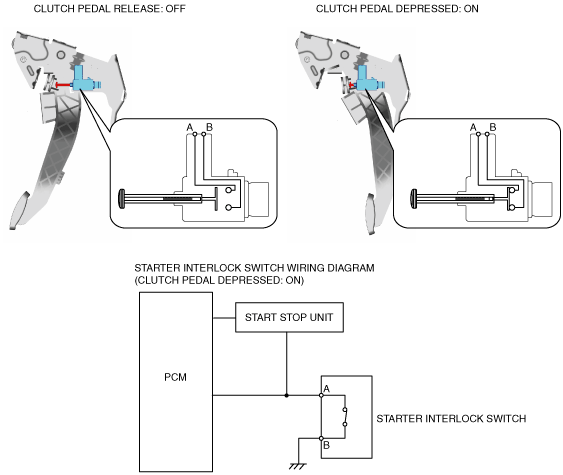

amxuun00001027

Fail-safe

•  Not applicable
