CURRENT SENSOR [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0140g8005000


Purpose

•  Battery conditions are monitored as basic information for determining the generator output current.

Function

•  The battery charge/discharge flow, battery voltage, and the battery ambient temperature are sent to the BCM by LIN communication.

Construction

•  The current sensor is located at the battery negative terminal.
amxzzn00001165
•  The current sensor consists of the following three main areas:
―  Voltage detecting area
―  Current detecting area
―  Temperature detecting area
•  LIN communication has been adopted to the current sensor for wiring harness simplification.

Operation

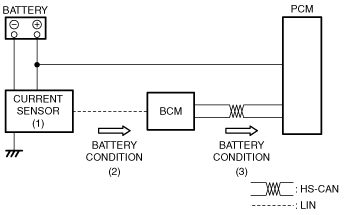

1.  The current sensor detects (1) the charge/discharge flow, battery voltage and battery ambient temperature from each detecting area sensor.

2.  The detected battery condition is sent (2) to the BCM by LIN communication, and then it is sent (3) to the PCM by CAN communication from the BCM.

amxzzn00001166

Fail-safe

DTC No.

Fail-safe function
P058A:00
•  Inhibits engine-stop by operating the i-stop function.
•  Inhibits the i-ELOOP control.
U1007:00
•  Inhibits engine-stop by operating the i-stop function.
•  Inhibits a part of the generator output control.
