FRONT WHEEL ALIGNMENT

id021100810000

Purpose of Adoption

Service Point

Camber Adjustment

Caution

•  Adjust the camber before adjusting the caster.

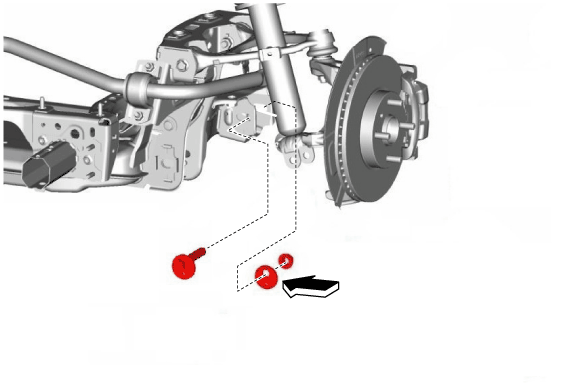

•  If there is an adjusting cam on the nut side, abnormal noise may occur if the adjusting cam bolt and nut are reused after removing the adjusting cam bolt installation nut. When adjusting the camber, be careful not to completely remove the adjusting cam bolt installation nut.

ardjjq00000001

•  If the adjusting cam bolt installation nut is removed, replace the adjusting cam bolt and nut with new ones.

Caster Adjustment

Caution

•  Adjust the caster after adjusting the camber.

•  If there is an adjusting cam on the nut side, abnormal noise may occur if the adjusting cam bolt and nut are reused after removing the adjusting cam bolt installation nut. When adjusting the caster, be careful not to completely remove the adjusting cam bolt installation nut.

ardjjq00000001

•  If the adjusting cam bolt installation nut is removed, replace the adjusting cam bolt and nut with new ones.
