TIRE PRESSURE MONITORING SYSTEM SET SWITCH INSPECTION [INDIRECT TIRE PRESSURE MONITORING SYSTEM (TPMS)]

id0212002060f4

Note

•  The Tire Pressure Monitoring System (TPMS) set switch is integrated with the cluster switch.

•  If the Tire Pressure Monitoring System (TPMS) set switch is replaced, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

1.  Remove the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

2.  Measure the resistance between cluster switches B and C under the following conditions:

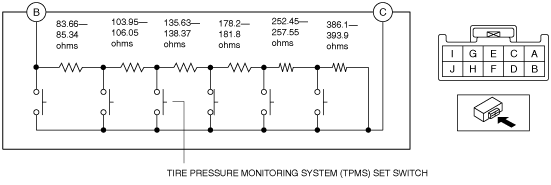

amxzzw00002860

•  If not within the specification, replace the cluster switch.
