FRONT LOWER ARM REMOVAL/INSTALLATION

id021300810700

Purpose of Adoption

Service Point

Adjusting Cam Bolt Installation Note

1.  When removing/installing the front lower arm, insert new adjusting cam bolts in the directions shown in the figure.

•  Vehicle front side: Insert adjusting cam bolt from vehicle rear

•  Vehicle rear side: Insert adjusting cam bolt from vehicle front

2.  Point the calibration marking on the adjusting cam bolt and cam plate towards the underside of the vehicle.

3.  If there is an adjusting cam on the nut side, tighten the new nut to the specified torque.

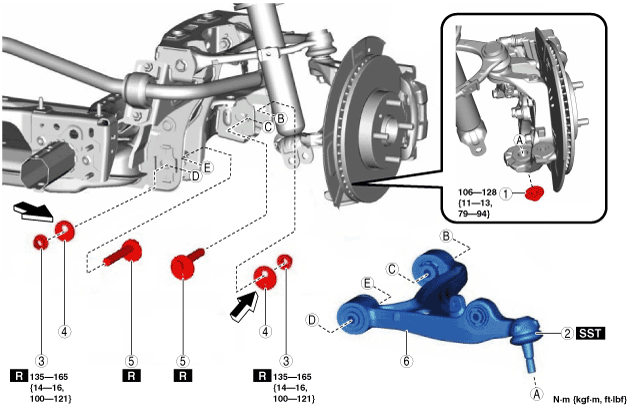

amxzzq00000001
