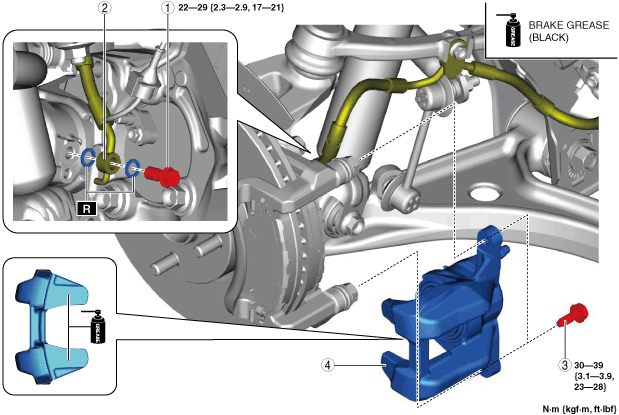

amxuuw00006101
FRONT BRAKE CALIPER REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER]
id0411000003w4
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING.)
4. Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.
amxuuw00006101
|
|
1
|
Bolt
|
|
2
|
Brake hose
|
|
3
|
Bolt
|
|
4
|
Front brake caliper
|
Front Brake Caliper Installation Note
1. Clean the exposed area of the piston.
2. Push the piston in using the commercially available disc brake expand tool.
amxuuw00006102
|
3. Install the front brake caliper component.
