REAR BRAKE DISC REMOVAL/INSTALLATION

id041100000900

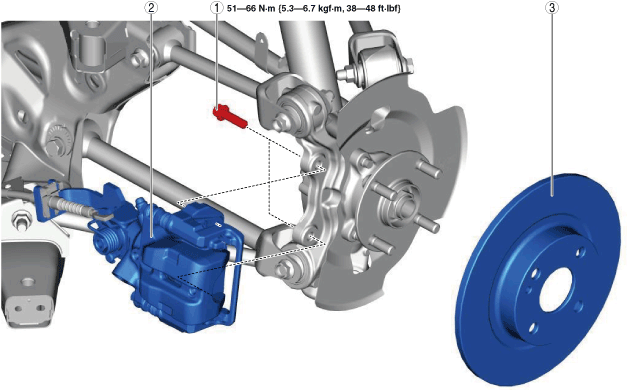

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. Pump the brake pedal a few times and inspect the following:

― The disc pad projection is securely installed to the piston groove

― Parking brake lever stroke

― Brake drag

amxuuw00006131

Rear Brake Caliper Component Removal Note

1. Remove the rear brake caliper component and suspend it in a place out of the way using a cable.

amxuuw00006132

Rear Brake Caliper Component Installation Note

1. Clean the exposed area of the piston.

2. Rotate the piston clockwise slowly using the SST and push the piston completely until the piston grooves are in the position shown in the figure.

amxuuw00006133

3. Install the caliper.

1	Bolt
2	Rear brake caliper component (See Rear Brake Caliper Component Removal Note.) (See Rear Brake Caliper Component Installation Note.)
3	Disc plate
