EVP CONTROL UNIT REMOVAL/INSTALLATION [L.H.D.]
id041100151850

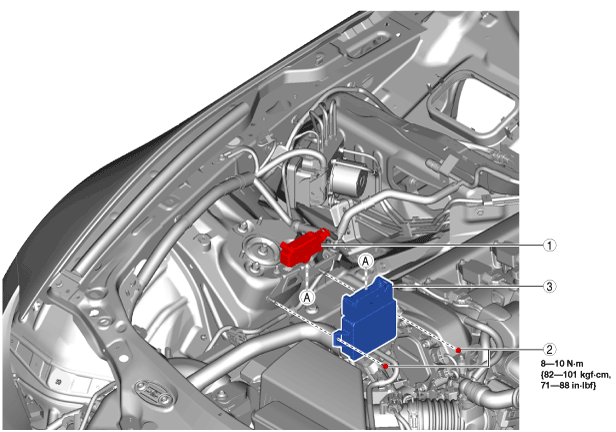

Without i-ELOOP
1. DIsconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
amxuuw00005044
|
|
1
|
EVP control unit connector
|
|
2
|
Nut
|
|
3
|
EVP control unit
|

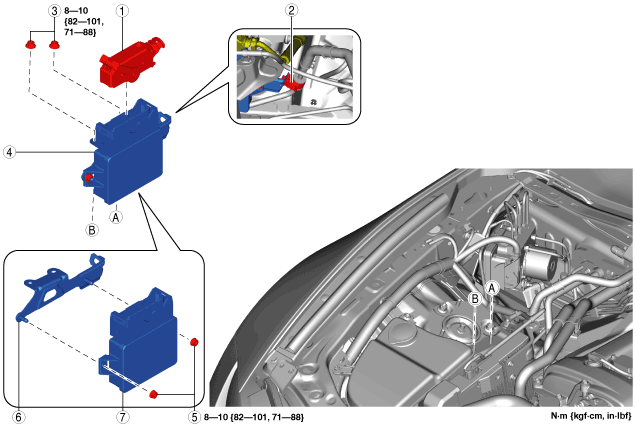

With i-ELOOP
1. DIsconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
amxzzw00003712
|
|
1
|
EVP control unit connector
|
|
2
|
Hose clip
|
|
3
|
Nut
|
|
4
|
EVP control unit component
|
|
5
|
Nut
|
|
6
|
Bracket
|
|
7
|
EVP control unit
|
