FRONT BRAKE (DISC)
id041100200700
Purpose/Function
• SKYACTIV-G 1.5:
-
― For the front brake (disc), a ventilated-type disc with a 258 mm {10.2 in} diameter and a 22 mm {0.87 in} thickness has been adopted to enhance braking force and fade resistance.
• SKYACTIV-G 2.0:
-
― For the front brake (disc), a ventilated-type disc with a 280 mm {11.0 in} diameter and a 22 mm {0.87 in} thickness has been adopted to enhance braking force and fade resistance.
Construction

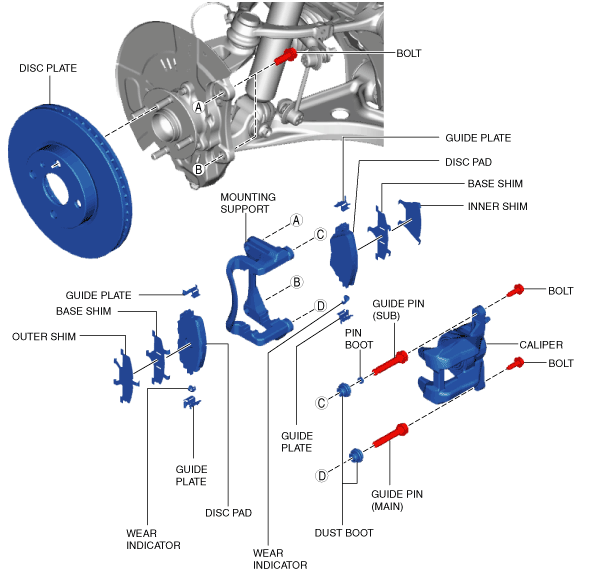

Single piston floating caliper

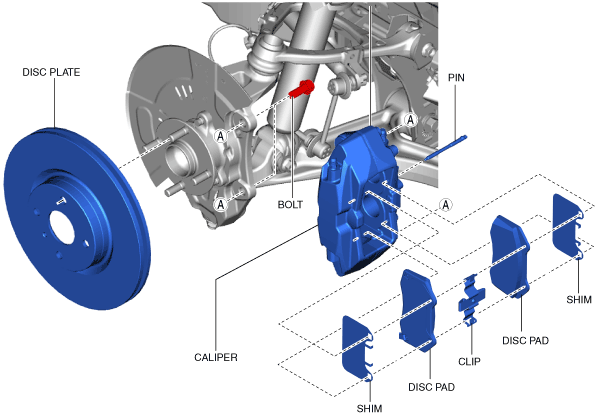

4-pot opposed piston caliper
Operation
Single piston floating caliper
• When brake fluid is applied, the piston equipped on one side of the caliper is pushed out and the brake pad is pushed against the disc plate. At the same time, the caliper body moves in the direction opposite of the direction in which the piston is pushed out so as to push the brake pad on the other side, generating a brake force.
4-pot opposed piston caliper
• When brake fluid is applied, the pistons equipped on both sides of the caliper are pushed and the brake pads on both sides are pushed against the disc plate, generating a brake force.
