DSC OFF SWITCH INSPECTION

id041500802000

Note

•  The DSC OFF switch is integrated with the cluster switch.

•  If the DSC OFF switch is replaced, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

1.  Remove the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

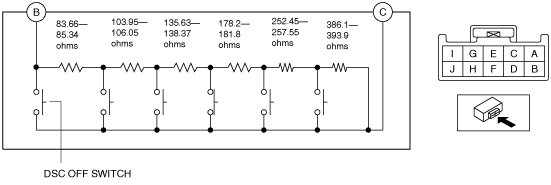

2.  Measure the resistance between cluster switches B and C under the following conditions:

amxzzw00002863

•  If not within the specification, replace the cluster switch.
